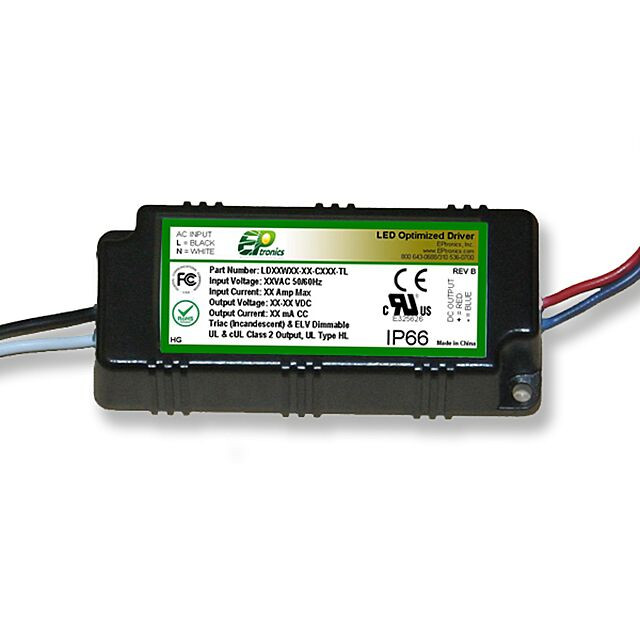

LD6W230-20-C0350-TL

Active

EPtronics, Inc.

12~20V@350MA, PHASE DIMMING

Search across all available documentation for this part.

Active

EPtronics, Inc.

12~20V@350MA, PHASE DIMMING

Technical Specifications

Parameters and characteristics for this part

12~20V@350MA, PHASE DIMMING

Part	Power (Watts)	Voltage - Input (Min) [Min]	Features	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Topology	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Mounting Type	Standard Number	Current - Output (Max) [Max]	Termination Style	Type	Weight	Weight	Ratings	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Dimming
EPtronics, Inc. LD6W230-20-C0350-TL	7 W	220 VAC	OCP, OVP, SCP	3750 V	-30 ░C	60 °C	277 VAC	AC DC Converter	81 %	12 V	20 V	1	Chassis Mount	C22.2, UL 8750	350 mA	Wire Leads	Constant Current	127.6 g	0.281 lb	IP66	23.1 mm	85.1 mm	3.35 in	36.1 mm	0.91 in	1.42 in	CE, cURus, FCC	ELV, TRIAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

350mA 12 ~ 20V Constant Current LED Driver AC DC Converter Topology 1 Output
