TSL1018IFT
ActiveSTMicroelectronics
IC AMP TFT-LCD 48TQFP
Deep-Dive with AI
Search across all available documentation for this part.
TSL1018IFT
ActiveSTMicroelectronics
IC AMP TFT-LCD 48TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSL1018IFT |
|---|---|
| -3db Bandwidth | 3.5 MHz |
| Current - Output / Channel | 150 mA |
| Current - Supply | 8 mA |
| Mounting Type | Surface Mount |
| Number of Circuits | 18 |

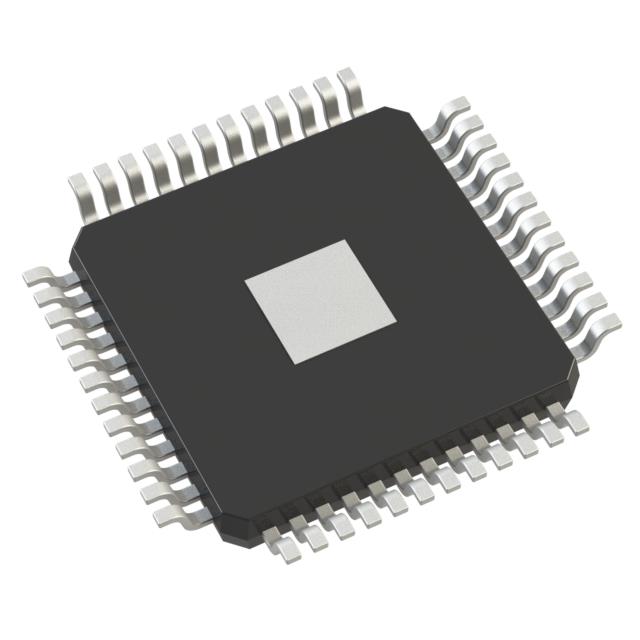

| Package / Case | 48-TQFP Exposed Pad |
| Slew Rate | 1.1 V/çs |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Voltage - Supply, Single/Dual (±) [Max] | 16.8 V |
| Voltage - Supply, Single/Dual (±) [Min] | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TSL1018 Series
IC AMP TFT-LCD 48TQFP
| Part | Slew Rate | Supplier Device Package | Current - Supply | Number of Circuits | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | -3db Bandwidth | Package / Case | Current - Output / Channel | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSL1018IFT | 1.1 V/çs | 48-TQFP-EP (7x7) | 8 mA | 18 | 16.8 V | 5.5 V | 3.5 MHz | 48-TQFP Exposed Pad | 150 mA | Surface Mount |
Description
General part information
TSL1018 Series
Video Amp 18 TFT-LCD Panels: Gamma Buffer, VCOM Driver 48-TQFP-EP (7x7)
Documents
Technical documentation and resources
No documents available
