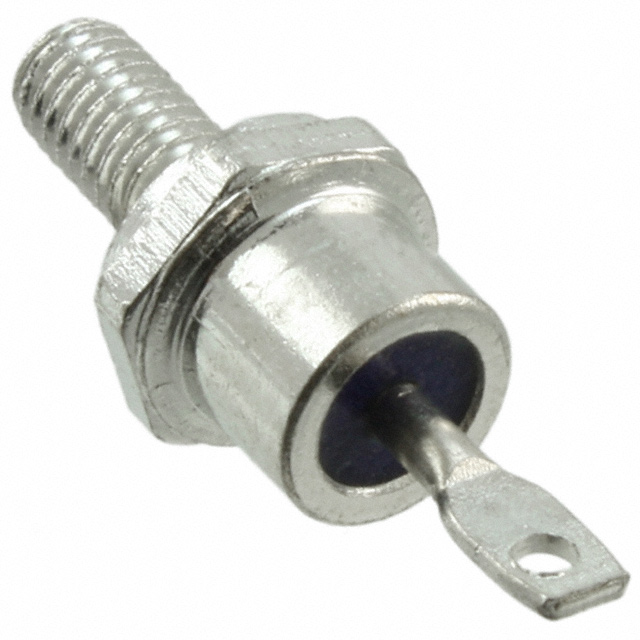

1N3671AR

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 800V 12A DO4

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 800V 12A DO4

Technical Specifications

Parameters and characteristics for this part

Specification	1N3671AR

Current - Average Rectified (Io)	12 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-4
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.1 V

Part	Speed	Speed	Mounting Type	Current - Average Rectified (Io)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Supplier Device Package
GeneSiC Semiconductor 1N3671AR	Standard Recovery >500ns	200 mA	Chassis Stud Mount	12 A	DO-203AA DO-4 Stud	800 V	10 µA	1.1 V	200 C	-65 C	Reverse Polarity Standard	DO-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 800 V 12A Chassis, Stud Mount DO-4
