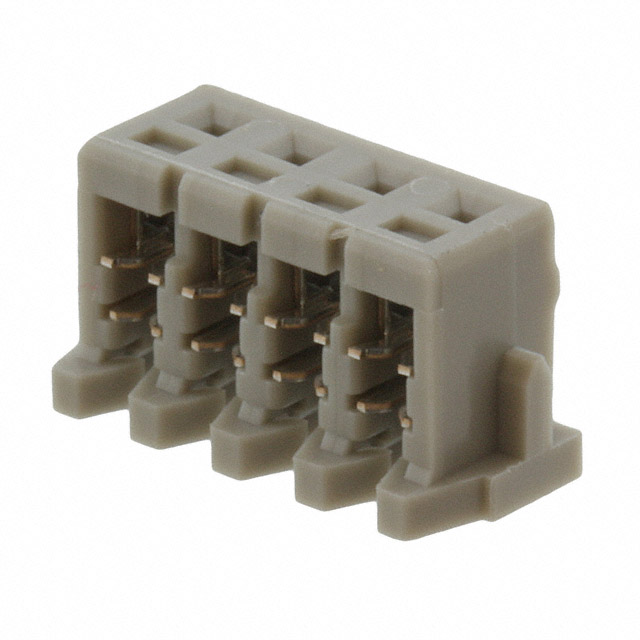

04KR-6H-P

Active

JST Sales America Inc.

CONN SOCKET 4POS IDC 26AWG TIN

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN SOCKET 4POS IDC 26AWG TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04KR-6H-P	04KR Series

Cable Termination	IDC	IDC
Color	Gray	Gray, Natural
Connector Type	Socket	Socket
Contact Finish	Tin	Tin
Contact Type	Female Socket	Female Socket
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Positions	4	4
Number of Rows	1	1
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Wire Gauge	26 AWG	26 AWG
Wire Type	Discrete	Discrete

CONN SOCKET 4POS IDC 26AWG TIN

Part	Wire Type	Contact Type	Number of Positions	Contact Finish	Number of Rows	Wire Gauge	Color	Connector Type	Pitch [x]	Pitch [x]	Cable Termination	Mounting Type
JST Sales America Inc. 04KR-6H-P	Discrete	Female Socket	4	Tin	1	26 AWG	Gray	Socket	0.079 in	2 mm	IDC	Free Hanging (In-Line)
JST Sales America Inc. 04KR-D6S-P	Discrete	Female Socket	4	Tin	1	26 AWG	Natural	Socket	0.079 in	2 mm	IDC	Free Hanging (In-Line), Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Rectangular Socket Connector IDC Tin 26 AWG
