HDB-78PFFS-SL7001

Active

Amphenol LTW

D-SUB, HIGH DENSITY, METAL, 2A, 78 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT WITHOUT BOARD LOCK, SCREW THREAD, SOLDER, RE

Search across all available documentation for this part.

Active

Amphenol LTW

D-SUB, HIGH DENSITY, METAL, 2A, 78 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT WITHOUT BOARD LOCK, SCREW THREAD, SOLDER, RE

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-78PFFS-SL7001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Number of Positions	78
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

Part	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Features	Connector Type	Color	Current Rating (Amps)	Flange Feature	Ingress Protection	Contact Type	Connector Style	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Number of Positions	Contact Finish
Amphenol LTW HDB-78PFFS-SL7001	Copper Alloy	24 AWG	28 AWG	Shielded	Receptacle Female Sockets	Black	2 A	Female Screwlock (4-40) Mating Side	IP67 - Dust Tight Waterproof	Signal	D-Sub High Density	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Nickel Plated Steel	78	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

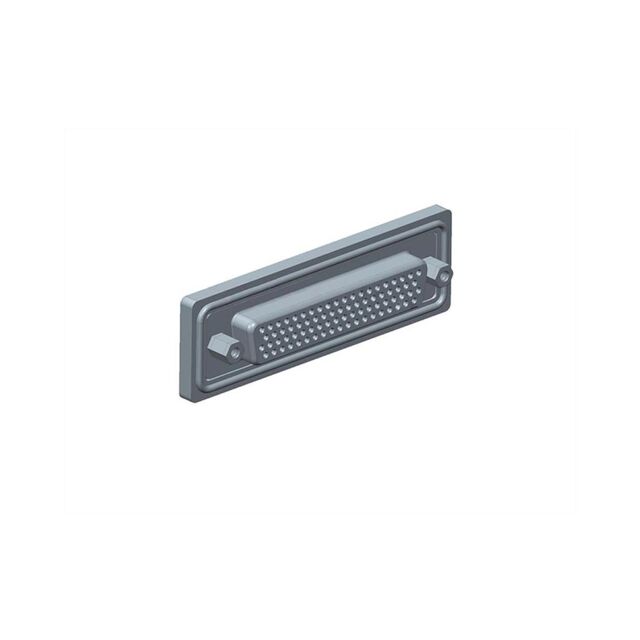

78 Position D-Sub, High Density Receptacle, Female Sockets Connector
