NRF52840-QIAA-R
ActiveNordic Semiconductor ASA
RF TRANSCEIVER, 2 MBPS, 2.36 TO 2.5 GHZ, 1.7 V TO 5.5 V, -89 DBM, -40 TO 85 °C, AQFN-73
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
NRF52840-QIAA-R
ActiveNordic Semiconductor ASA
RF TRANSCEIVER, 2 MBPS, 2.36 TO 2.5 GHZ, 1.7 V TO 5.5 V, -89 DBM, -40 TO 85 °C, AQFN-73
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | NRF52840-QIAA-R |
|---|---|
| Current - Receiving | 6.3 mA |
| Current - Transmitting | 16.4 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 48 |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

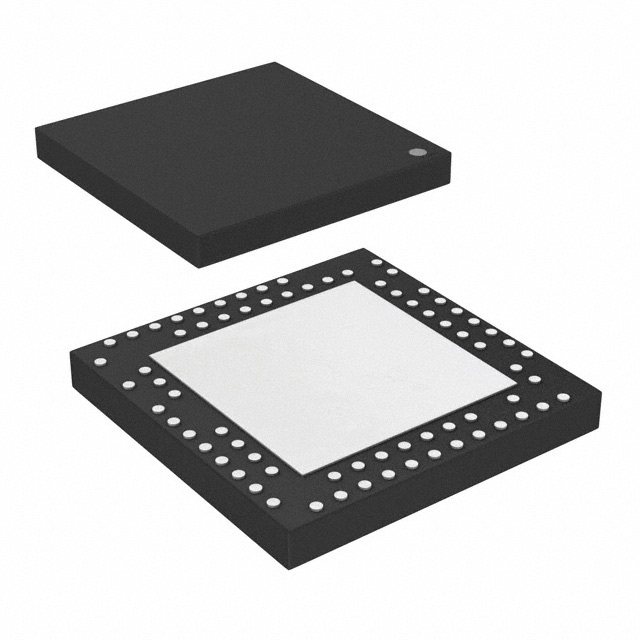

| Package / Case | 73-VFQFN Dual Rows, Exposed Pad |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Supplier Device Package | 73-QFN (7x7) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NRF52840 Series
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0 2.4GHz 73-VFQFN Dual Rows, Exposed Pad
