052C,GY

Active

Serpac

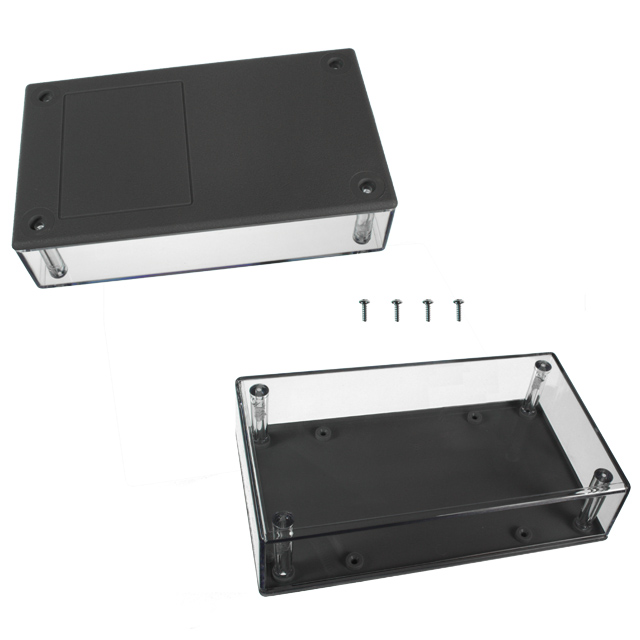

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

052C,GY

Active

Serpac

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	052C,GY	052 Series

Area (L x W)	18.3 in²	18.3 in²
Area (L x W)	118 cm²	118 cm²
Color	Gray, Clear Cover/Door	Almond, Gray, Black, Clear Cover/Door
Container Type	Box	Box
Features	PCB Supports	PCB Supports, Wall Mount
Height [z]	35.56 mm	35.56 mm
Height [z]	1.4 in	1.4 in
Material	Plastic, Polycarbonate	Plastic, ABS, Plastic, Polycarbonate
Material Flammability Rating	-	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	142.75 mm	142.75 mm
Size / Dimension [x]	5.62 in	5.62 in
Size / Dimension [y]	3.25 "	3.25 "
Size / Dimension [y]	82.55 mm	82.55 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	99.79 g	99.79 g
Weight	0.22 lb	0.22 lb

052 Series

BOX ABS ALMOND 5.62"L X 3.25"W

Part	Area (L x W)	Area (L x W)	Thickness	Thickness	Container Type	Weight	Weight	Features	Material Flammability Rating	Material	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Ratings
Serpac 052W,AL	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports, Wall Mount	UL94 HB	Plastic, ABS	Almond	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052,GR	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports	UL94 HB	Plastic, ABS	Gray	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052,BK	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports	UL94 HB	Plastic, ABS	Black	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052,AL	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports	UL94 HB	Plastic, ABS	Almond	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052C,BK	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports		Plastic, Polycarbonate	Black, Clear Cover/Door	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052W,BK	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports, Wall Mount	UL94 HB	Plastic, ABS	Black	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052W,GY	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports, Wall Mount	UL94 HB	Plastic, ABS	Gray	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052C,AL	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports		Plastic, Polycarbonate		3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1
Serpac 052C,GY	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	99.79 g	0.22 lb	PCB Supports		Plastic, Polycarbonate	Clear Cover/Door, Gray	3.25 "	142.75 mm	82.55 mm	5.62 in	35.56 mm	1.4 in	IP40, NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.99

Description

General part information

052 Series

Box Plastic, Polycarbonate Gray, Clear Cover/Door 5.620" L x 3.250" W (142.75mm x 82.55mm) X 1.400" (35.56mm)

Documents

Technical documentation and resources

No documents available
