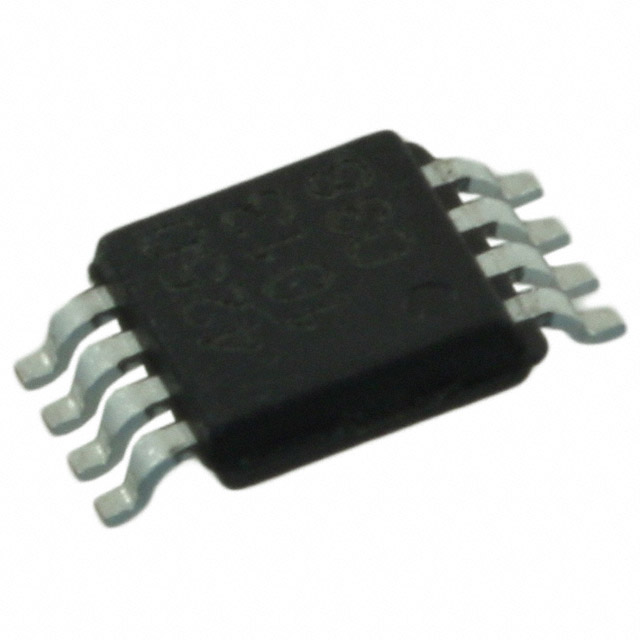

PE4250MLI-Z

Active

pSemi Corporation

IC RF SWITCH SPDT 3GHZ 8MSOP

Search across all available documentation for this part.

Active

pSemi Corporation

IC RF SWITCH SPDT 3GHZ 8MSOP

Technical Specifications

Parameters and characteristics for this part

Specification	PE4250MLI-Z

Circuit	SPDT
Features	DC Blocked, Single/Dual Line Control
Frequency Range [Max]	3 GHz
Frequency Range [Min]	10 MHz
IIP3	59 dBm
Impedance	50 Ohms
Insertion Loss	0.75 dB
Isolation	40 dB
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
P1dB	30.5 dBm
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
RF Type	General Purpose
Supplier Device Package	8-MSOP
Test Frequency	3 GHz
Topology	Reflective
Voltage - Supply [Max]	3.6 V, 5.5 V
Voltage - Supply [Min]	4.5 V, 3 V

IC RF SWITCH SPDT 3GHZ 8MSOP

Part	Isolation	Package / Case	Package / Case [custom]	Package / Case	Topology	Mounting Type	Test Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Frequency Range [Max]	Frequency Range [Min]	Features	Insertion Loss	IIP3	RF Type	P1dB	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Impedance
pSemi Corporation PE4250MLI-Z	40 dB	8-MSOP, 8-TSSOP	0.118 in	3 mm	Reflective	Surface Mount	3 GHz	85 °C	-40 °C	SPDT	3 GHz	10 MHz	DC Blocked, Single/Dual Line Control	0.75 dB	59 dBm	General Purpose	30.5 dBm	3.6 V, 5.5 V	3 V, 4.5 V	8-MSOP	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Switch IC General Purpose SPDT 3 GHz 50Ohm 8-MSOP
