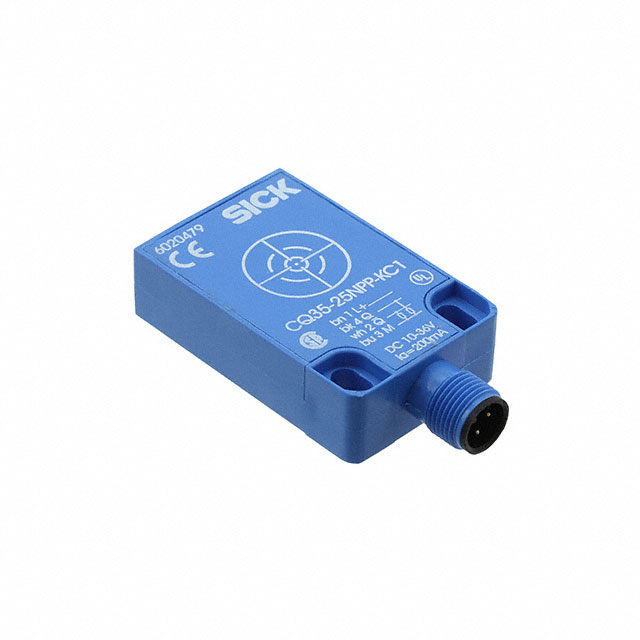

6020479

Active

SICK, Inc.

SENSOR PROX CAP 4MM-25MM FLANGE

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROX CAP 4MM-25MM FLANGE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Body	Ingress Protection	Shielding	Package / Case	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Indicator [custom]	Response Frequency	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
SICK, Inc. CQ35-25NNP-KC1	Plastic	IP67	Shielded	Module	0.984 "	4 mm	25 mm	0.157 "	NPN-NC/NO 4-Wire	10 VDC	36 V	Capacitive	LED	50 Hz	Connector	-25 °C	75 °C
SICK, Inc. 6020478	Plastic	IP67	Unshielded	Flange Mount	0.984 "	4 mm	25 mm	0.157 "	4-Wire PNP-NC	10 VDC	36 V	Capacitive	LED	50 Hz	Cable Leads	-25 °C	75 ░C
SICK, Inc. 6020479	Plastic	IP67	Unshielded	Flange Mount	0.984 "	4 mm	25 mm	0.157 "	4-Wire PNP-NC	10 VDC	36 V	Capacitive	LED	50 Hz	Connector	-25 °C	75 ░C
SICK, Inc. 6021463	Plastic	IP67	Unshielded	Flange Mount	0.984 "	4 mm	25 mm	0.157 "	4-Wire NPN-NO	10 VDC	36 V	Capacitive	LED	50 Hz	Cable Leads	-25 °C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX CAP 4MM-25MM FLANGE
