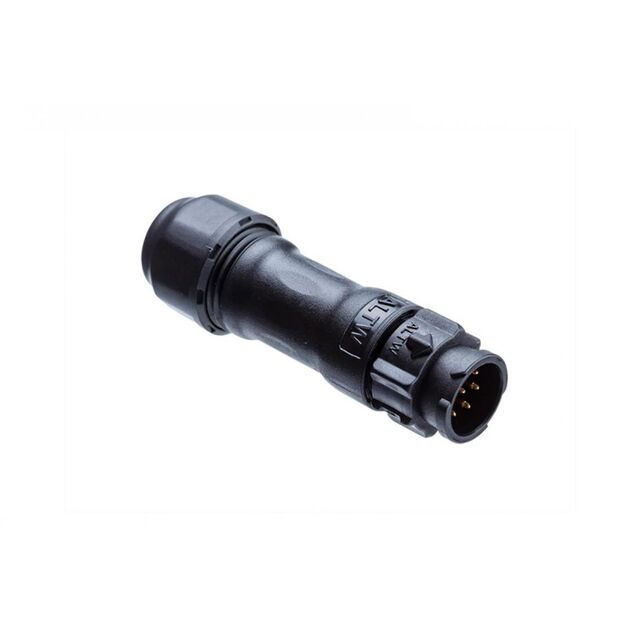

BB-03BMMA-QL8LNP

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 10A, 03 PI

Deep-Dive with AI

Search across all available documentation for this part.

BB-03BMMA-QL8LNP

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 10A, 03 PI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BB-03BMMA-QL8LNP

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Push-Pull
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	B
Shielding	Unshielded
Type	For Male Pins

BB-03BMMA Series

Part	Orientation	Shielding	Contact Finish - Mating	Color	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connector Type	Shell Size - Insert	Contact Material	Material Flammability Rating	Insert Material	Primary Material	Features	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Voltage Rating	Termination	Number of Positions	Fastening Type	Shell Material	Note	Housing Color	Contact Type	Contact Shape	Type
Amphenol LTW BB-03BMMA-QL8LPP	Keyed	Unshielded	Gold	Black	10 A	Free Hanging (In-Line)	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Male Pins Plug	B	Copper Alloy	UL94 V-0	Thermoplastic	Plastic	Backshell	0.394 in	8 mm	10 mm	0.315 in	300 VAC	Crimp
Amphenol LTW BB-03BMMA-QL8MPP	Keyed	Unshielded	Gold	Black	10 A	Free Hanging (In-Line)	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Male Pins Plug	B	Copper Alloy	UL94 V-0	Polyamide (PA) Nylon Glass Filled	Plastic	Backshell	0.315 in	6 mm	8 mm	0.236 in	300 VAC	Crimp	3	Push-Pull	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BB-03BMMA-QL8LNP	Keyed	Unshielded				Free Hanging (In-Line)	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Plug Housing	B			Thermoplastic	Plastic	Backshell								Push-Pull		Contacts Not Included	Black	Crimp	Circular	For Male Pins
Amphenol LTW BB-03BMMA-QL8SPP	Keyed	Unshielded	Gold	Black	10 A	Free Hanging (In-Line)	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Male Pins Plug	B	Copper Alloy	UL94 V-0	Polyamide (PA) Nylon Glass Filled	Plastic	Backshell	0.236 in	5 mm	6 mm	0.197 in	300 VAC	Crimp	3	Push-Pull	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BB-03BMMA-QL8MNP	Keyed	Unshielded				Free Hanging (In-Line)	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Plug Housing	B			Thermoplastic	Plastic	Backshell								Push-Pull		Contacts Not Included	Black	Crimp	Circular	For Male Pins
Amphenol LTW BB-03BMMA-QL8SNP	Keyed	Unshielded				Free Hanging (In-Line)	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Plug Housing	B			Thermoplastic	Plastic	Backshell								Push-Pull		Contacts Not Included	Black	Crimp	Circular	For Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.79

Description

General part information

BB-03BMMA Series

3 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
