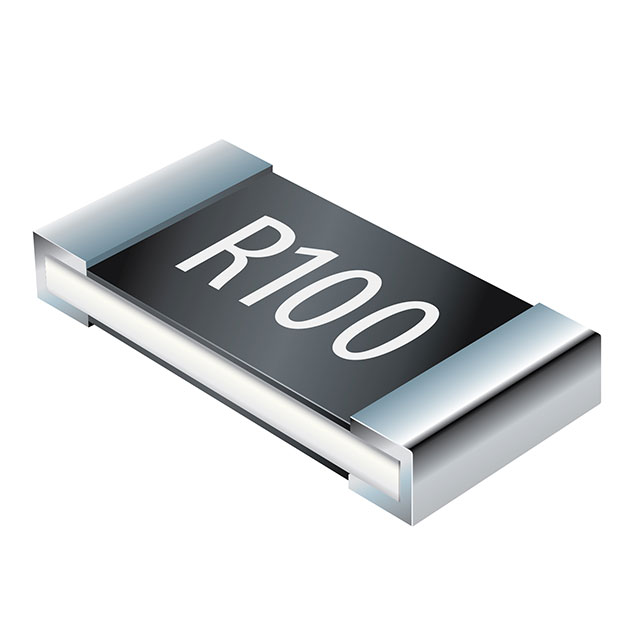

CRM0805AFX-R100ELF

Active

Bourns Inc.

RES THICK FILM 0805 0.1 OHM 1% 0.25W(1/4W) ±100PPM/°C SULFUR RESISTANT PAD SMD T/R AUTOMOTIVE AEC-Q200

Search across all available documentation for this part.

Active

Bourns Inc.

RES THICK FILM 0805 0.1 OHM 1% 0.25W(1/4W) ±100PPM/°C SULFUR RESISTANT PAD SMD T/R AUTOMOTIVE AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Specification	CRM0805AFX-R100ELF

Composition	Thick Film
Features	Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Power (Watts)	0.25 W
Power (Watts)	250 mW
Ratings	AEC-Q200
Resistance	0.1 Ohms
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.047 in
Size / Dimension [y]	1.2 mm
Supplier Device Package	0805
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Supplier Device Package	Package / Case	Features	Resistance	Temperature Coefficient	Power (Watts)	Power (Watts)	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings
Bourns Inc. CRM0805-JW-4R7ELF	0.6 mm	0.024 in	5 %	0805	0805	Current Sense	4.7 Ohms	200 ppm/°C	0.25 W	250 mW	Thick Film	155 °C	-55 °C	2	2 mm	0.047 in	0.079 in	1.2 mm
Bourns Inc. CRM0805AJX-R100ELF	0.6 mm	0.024 in	5 %	0805	0805	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.1 Ohms	100 ppm/°C	0.25 W	250 mW	Thick Film	155 °C	-55 °C	2	2 mm	0.047 in	0.079 in	1.2 mm	AEC-Q200
Bourns Inc. CRM0805-JW-3R6ELF	0.6 mm	0.024 in	5 %	0805	0805	Current Sense	3.6 Ohms	200 ppm/°C	0.25 W	250 mW	Thick Film	155 °C	-55 °C	2	2 mm	0.047 in	0.079 in	1.2 mm
Bourns Inc. CRM0805-JW-1R0ELF	0.6 mm	0.024 in	5 %	0805	0805	Current Sense	1 Ohms	200 ppm/°C	0.25 W	250 mW	Thick Film	155 °C	-55 °C	2	2 mm	0.047 in	0.079 in	1.2 mm
Bourns Inc. CRM0805-FX-4751ELF	0.6 mm	0.024 in	1 %	0805	0805	Current Sense	4.75 kOhms	100 ppm/°C	0.25 W	250 mW	Thick Film	155 °C	-55 °C	2	2 mm	0.047 in	0.079 in	1.2 mm
Bourns Inc. CRM0805AFX-R100ELF	0.6 mm	0.024 in	1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.1 Ohms	100 ppm/°C	0.25 W	250 mW	Thick Film	155 °C	-55 °C	2	2 mm	0.047 in	0.079 in	1.2 mm	AEC-Q200
Bourns Inc. CRM0805-FX-2490ELF	0.6 mm	0.024 in	1 %	0805	0805	Current Sense	249 Ohms	100 ppm/°C	0.25 W	250 mW	Thick Film	155 °C	-55 °C	2	2 mm	0.047 in	0.079 in	1.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 mOhms ±1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thick Film
