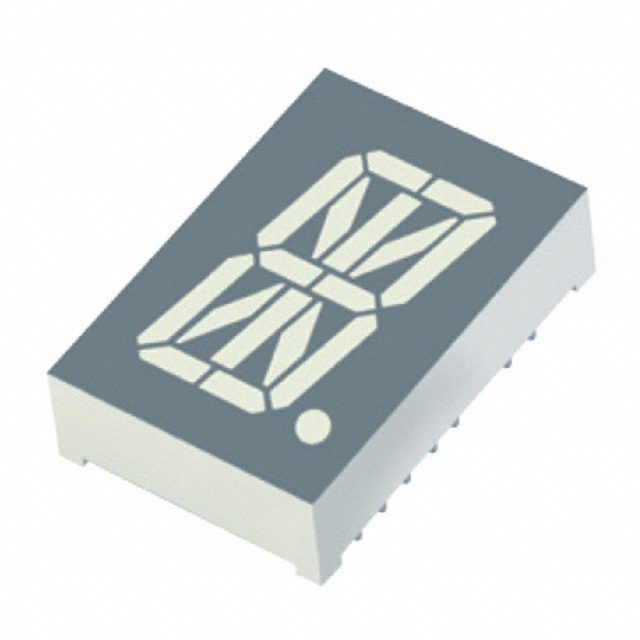

XAUY20C
ActiveSunLED
DISPLAY 16SEG 0.8" SGL YLW 18DIP
XAUY20C
ActiveSunLED
DISPLAY 16SEG 0.8" SGL YLW 18DIP
Description
General part information
XAUY20 Series
Display Modules - LED Character and Numeric Yellow 16-Segment, Alphanumeric 1 Character Common Cathode 1.95V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | XAUY20C |
|---|---|
| Color | Yellow |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.8 in |
| Display Type | Alphanumeric, 16-Segment |
| Millicandela Rating | 2 mcd |
| Number of Characters | 1 |
| Package Length | 0.6 in |
| Package Name | 18-DIP |
| Package Width | 15.24 mm |
| Power Dissipation (Max) | 75 mw |
| Size / Dimension Depth | 0.335 in |
| Size / Dimension Height | 1.091 in |
| Size / Dimension Width | 0.787 in |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 590 nm |
