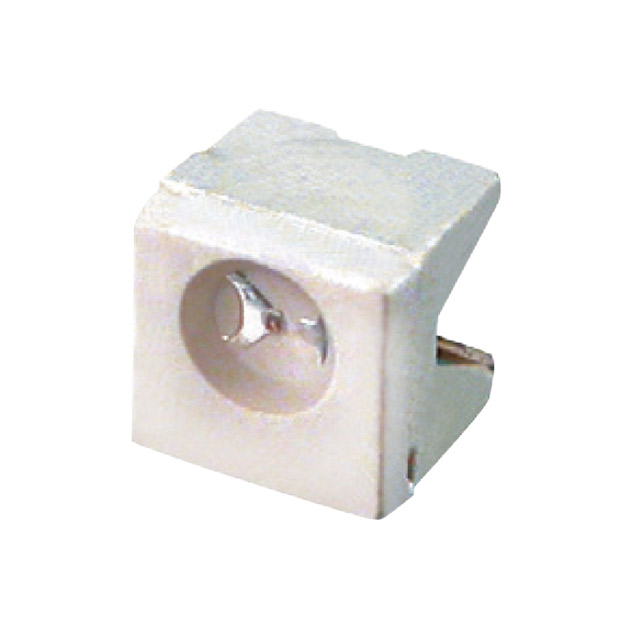

XZMOK67S
ActiveSunLED
LED ORANGE CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMOK67S
ActiveSunLED
LED ORANGE CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMOK67S |
|---|---|
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 218 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, Boomerang |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 3.6 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 601 nm |
| Wavelength - Peak | 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| Digi-Reel® | 1 | $ 0.58 | ||
| Tape & Reel (TR) | 1000 | $ 0.16 | ||
| 2500 | $ 0.15 | |||
| 5000 | $ 0.13 | |||
| 12500 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
XZMOK67 Series
Orange 601nm LED Indication - Discrete 2.1V 2-SMD, Boomerang
