Description

General part information

KPT06 Series

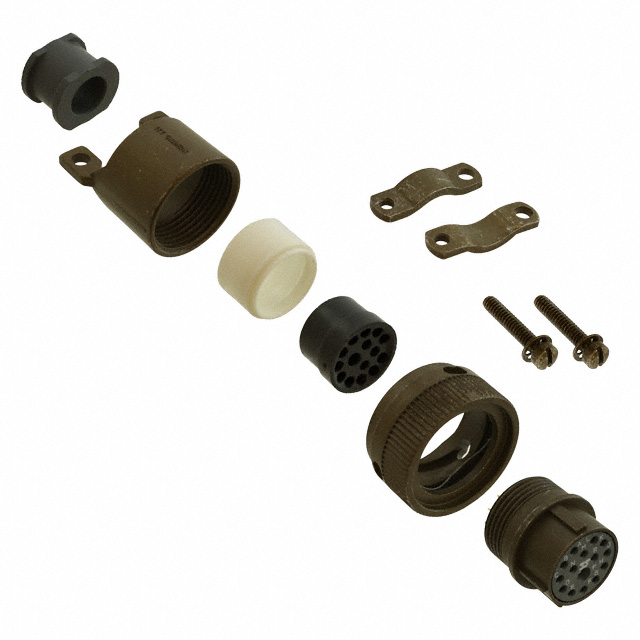

15 Position Circular Connector Plug, Female Sockets Solder Cup

Technical Specifications

Parameters and characteristics for this part

Specification	KPT06F1415S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Current Rating Options	7.5A, 13A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	15
Shell Size - Insert (Minimum)	14 S
Termination	Solder Cup
Voltage Rating (AC)	600 VAC
Voltage Rating (DC)	850 VDC

KPT06 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Current Rating	Contact Finish Thickness - Mating	Orientation	Shell Finish	Number of Positions	Voltage Rating (AC)	Voltage Rating (DC)	Fastening Type	Primary Material	Mounting Type	Contact Finish - Mating	Connector Type	Termination	Color	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Features	Ingress Protection	Current Rating Options	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert Length	Shell Size - Insert Width
ITT Cannon, LLC KPT06E20-24PDN	125 °C	-55 °C	Aluminum Alloy	7.5 A	50 µin	N (Normal)	Olive Drab Cadmium	24 pos	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Male Pins Plug	Solder Cup	Olive Drab	20	24	Shrink Boot Adapter	Environment Resistant
ITT Cannon, LLC KPT06P16-23P	125 °C	-55 °C	Aluminum Alloy		50 µin	N (Normal)	Olive Drab Cadmium	23	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Male Pins Plug	Solder Cup	Olive Drab	16 S	23	Potted	Environment Resistant	13A 7.5A
ITT Cannon, LLC KPT06F14-18PA206	125 °C	-55 °C	Aluminum Alloy	7.5 A	50 µin	N (Normal)	Black Zinc	18	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Male Pins Plug	Solder Cup	Black	14 S	18	Strain Relief	Environment Resistant
ITT Cannon, LLC KPT06A18-32P	125 °C	-55 °C	Aluminum Alloy	7.5 A	50 µin	N (Normal)	Olive Drab Cadmium	32	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Male Pins Plug	Solder Cup	Olive Drab	18	32				Unshielded	Dust Tight Waterproof	IP67
ITT Cannon, LLC KPT06F1415S	125 °C	-55 °C	Aluminum Alloy		50 µin	N (Normal)	Olive Drab Cadmium	15	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Female Sockets Plug	Solder Cup	Olive Drab	14 S	15	Strain Relief	Environment Resistant	13A 7.5A
ITT Cannon, LLC KPT06F14-15P	125 °C	-55 °C	Aluminum Alloy		50 µin	N (Normal)	Olive Drab Cadmium	15	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Male Pins Plug	Solder Cup	Olive Drab	14 S	15	Strain Relief	Environment Resistant	13A 7.5A
ITT Cannon, LLC KPT06F20-39SA206	125 °C	-55 °C	Aluminum Alloy		50 µin	N (Normal)	Black Zinc	39	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Female Sockets Plug	Solder Cup	Black	20	39	Strain Relief	Environment Resistant	13A 7.5A
ITT Cannon, LLC KPT06P12-8PW	125 °C	-55 °C	Aluminum Alloy	7.5 A	50 µin	W	Olive Drab Cadmium	8	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Male Pins Plug	Solder Cup	Olive Drab			Potted	Environment Resistant					12 mm	8 mm
ITT Cannon, LLC KPT06B8-2P	125 °C	-55 °C	Aluminum Alloy	7.5 A	50 µin	N (Normal)	Olive Drab Cadmium	2	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Male Pins Plug	Solder Cup	Olive Drab			Strain Relief						8 mm	2 mm
