657-2435-303F

Active

DIALIGHT

PMI, DOME, GY, 10-30VDC

Search across all available documentation for this part.

Active

DIALIGHT

PMI, DOME, GY, 10-30VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

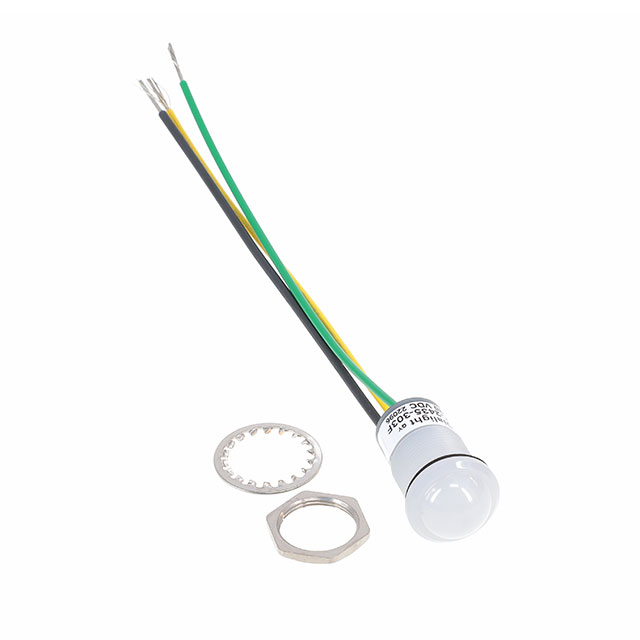

LED Panel Indicator Green, Yellow Diffused 10V ~ 30V 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

PMI, DOME, BR, 10-30VDC

Part	Panel Cutout Shape	Lens Style	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Lamp Color	Lens Transparency	Voltage [Max]	Voltage [Min]	Lens Color	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]	Ingress Protection	Millicandela Rating [custom]	Millicandela Rating
DIALIGHT 657-2425-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Blue, Red	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd	90 mcd	IP67, NEMA 4X
DIALIGHT 657-2485-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Blue, Green, Red	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd	90 mcd	IP67, NEMA 4X	500 mcd
DIALIGHT 657-2495-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Green, Red, Yellow	Diffused	30 V	10 V	White	16.5 mm Dia			IP67, NEMA 4X		255 mcd, 260 mcd, 500 mcd
DIALIGHT 657-2455-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Red, Yellow	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd		IP67, NEMA 4X	260 mcd
DIALIGHT 657-2415-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Green, Red	Diffused	30 V	10 V	White	16.5 mm Dia	255 mcd		IP67, NEMA 4X	500 mcd
DIALIGHT 657-2435-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Green, Yellow	Diffused	30 V	10 V	White	16.5 mm Dia			IP67, NEMA 4X		260 mcd, 500 mcd
DIALIGHT 657-2465-303F	Round	Round with Domed Top	DC	17.46 mm	0.69 in	LED	Blue, Green	Diffused	30 V	10 V	White	16.5 mm Dia			IP67, NEMA 4X		90 mcd, 500 mcd
