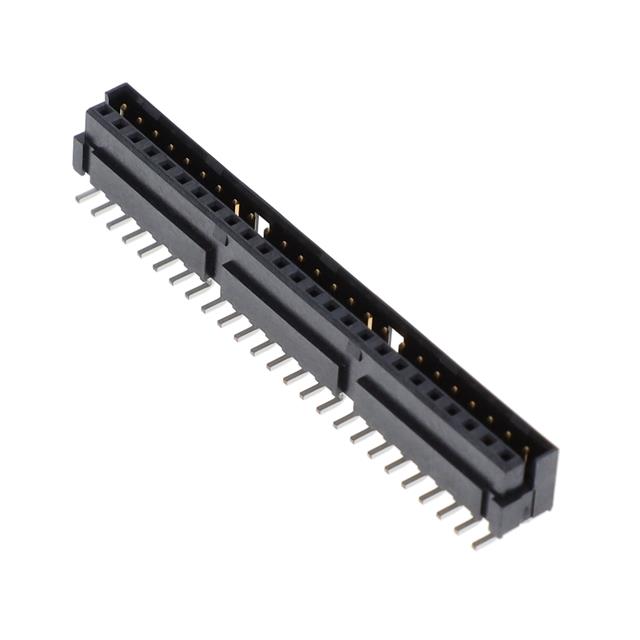

LS2-125-02-L-D-K

Active

Samtec Inc.

CONN SELF-MATE 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LS2-125-02-L-D-K

Active

Samtec Inc.

CONN SELF-MATE 50POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LS2-125-02-L-D-K

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	8.38 mm
Height Above Board	0.33 in
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm

LS2-125 Series

Part	Features	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Contact Finish	Height Above Board	Height Above Board	Contact Finish Thickness	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. LS2-125-01-F-D	Latch Holder	0.079 in	2 mm	Through Hole	2	Gold	0.25 in	6.35 mm	Flash	Self Mating Non-Gendered Hermaphroditic	50
Samtec Inc. LS2-125-02-S-D-A-K-TR	Board Guide Latch Holder Pick and Place	0.079 in	2 mm	Surface Mount	2	Gold	0.33 in	8.38 mm		Self Mating Non-Gendered Hermaphroditic	50	0.76 Ám	30 Áin
Samtec Inc. LS2-125-02-L-D-A	Board Guide Latch Holder	0.079 in	2 mm	Surface Mount	2	Gold	0.33 in	8.38 mm		Self Mating Non-Gendered Hermaphroditic	50	0.25 Ám	10 Áin
Samtec Inc. LS2-125-02-S-D-K-TR		0.079 in	2 mm	Surface Mount	2	Gold	0.33 in	8.38 mm		Self Mating Non-Gendered Hermaphroditic	50	0.76 Ám	30 Áin
Samtec Inc. LS2-125-01-S-D-RA1	Latch Holder	0.079 in	2 mm	Through Hole Right Angle	2	Gold	0.208 in	5.28 mm		Self Mating Non-Gendered Hermaphroditic	50	0.76 Ám	30 Áin
Samtec Inc. LS2-125-01-L-D-RA1	Latch Holder	0.079 in	2 mm	Through Hole Right Angle	2	Gold	0.208 in	5.28 mm		Self Mating Non-Gendered Hermaphroditic	50	0.25 Ám	10 Áin
Samtec Inc. LS2-125-01-L-D	Latch Holder	0.079 in	2 mm	Through Hole	2	Gold	0.25 in	6.35 mm		Self Mating Non-Gendered Hermaphroditic	50	0.25 Ám	10 Áin
Samtec Inc. LS2-125-01-L-D-RA2	Latch Holder	0.079 in	2 mm	Through Hole Right Angle	2	Gold	0.208 in	5.28 mm		Self Mating Non-Gendered Hermaphroditic	50	0.25 Ám	10 Áin
Samtec Inc. LS2-125-02-F-D	Latch Holder	0.079 in	2 mm	Surface Mount	2	Gold	0.33 in	8.38 mm	Flash	Self Mating Non-Gendered Hermaphroditic	50
Samtec Inc. LS2-125-02-L-D-K		0.079 in	2 mm	Surface Mount	2	Gold	0.33 in	8.38 mm		Self Mating Non-Gendered Hermaphroditic	50	0.25 Ám	10 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.67
		10	$ 11.71
		25	$ 11.07
		50	$ 10.67
		100	$ 9.96

Description

General part information

LS2-125 Series

50 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
