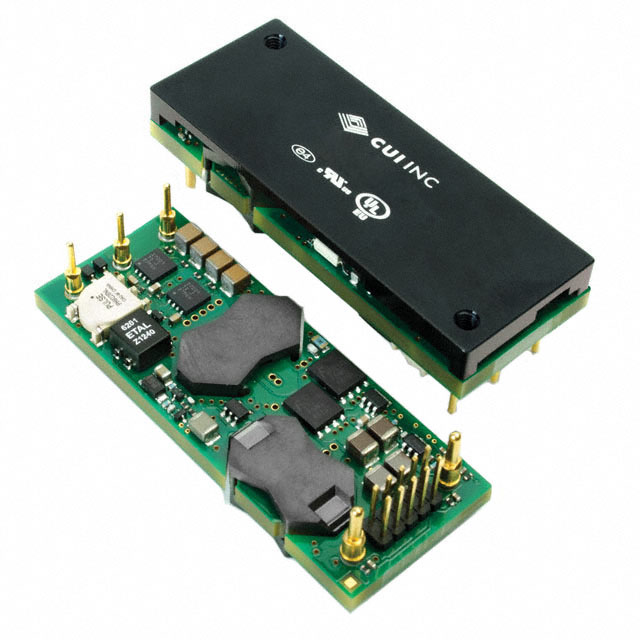

NEB-300DWA-ANH

CUI Inc.

DC DC CONVERTER 12V 300W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 12V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	NEB-300DWA-ANH

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	25 A
Efficiency	95.2 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	15-DIP Module, 1/8 Brick
Power (Watts)	300 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	22.7 mm
Size / Dimension [y]	0.89 in
Size / Dimension [z]	0.52 "
Size / Dimension [z]	13.2 mm
Type	Intermediate Bus Converter, Digital
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	40 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Efficiency	Applications	Features	Control Features	Number of Outputs	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Type	Voltage - Input (Min) [Min]	Power (Watts)
CUI Inc. NEB-300NWA-ANH	0.52 "	13.2 mm	22.7 mm	2.3 in	58.4 mm	0.89 in	60 V	12 V	25 A	95.2 %	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	1	1/8 Brick 5-DIP Module	Through Hole	125 °C	-40 °C	2250 VDC	Intermediate Bus Converter	40 V	300 W
CUI Inc. NEB-300NWA-AN	0.4 "	10.2 mm	22.7 mm	2.3 in	58.4 mm	0.89 in	60 V	12 V	25 A	95.2 %	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	1	1/8 Brick 5-DIP Module	Through Hole	125 °C	-40 °C	2250 VDC	Intermediate Bus Converter	40 V	300 W
CUI Inc. NEB-300DWA-ANH	0.52 "	13.2 mm	22.7 mm	2.3 in	58.4 mm	0.89 in	60 V	12 V	25 A	95.2 %	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	1	1/8 Brick 15-DIP Module	Through Hole	125 °C	-40 °C	2250 VDC	Intermediate Bus Converter Digital	40 V	300 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	75	$ 72.13

General part information

Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 25A 40V - 60V Input
