5936-0

Active

Pomona Electronics

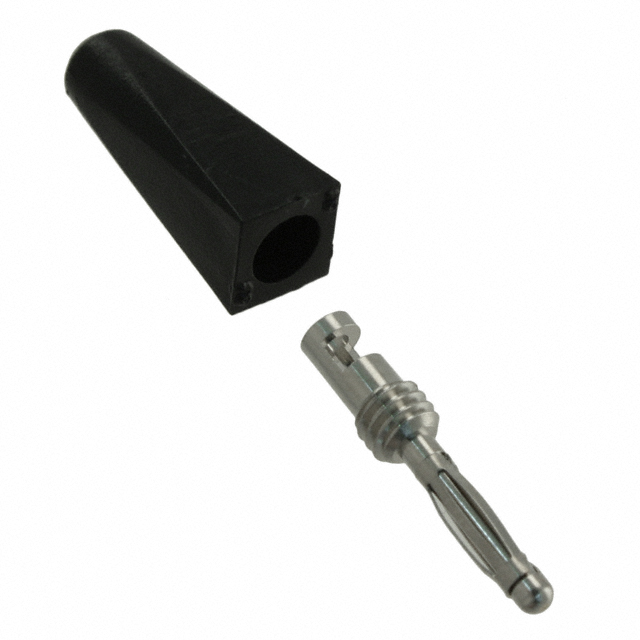

BANANA PLUG, 2MM, 5A, SOLDER, BLACK,PK10

Search across all available documentation for this part.

Active

Pomona Electronics

BANANA PLUG, 2MM, 5A, SOLDER, BLACK,PK10

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Max]	Wire Gauge [Min]	Body Material	Insulation	Contact Finish	Color	Plug/Mating Plug Diameter	Contact Material	Termination	Gender	Type	Mounting Type
Pomona Electronics 5936-0#	22 AWG	17.5 AWG	Nylon Polyamide (PA)	Non-Mating End Insulated	Nickel	Black	Miniature	Beryllium Copper	Solder	Male	Banana Plug	Free Hanging (In-Line)
Pomona Electronics 5936-2	22 AWG	17.5 AWG	Nylon Polyamide (PA)	Non-Mating End Insulated	Nickel	Red	Miniature	Beryllium Copper	Solder	Male	Banana Plug	Free Hanging (In-Line)
Pomona Electronics 5936-0	22 AWG	17.5 AWG	Nylon Polyamide (PA)	Non-Mating End Insulated	Nickel	Black	Miniature	Beryllium Copper	Solder	Male	Banana Plug	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Banana Plug Connector Miniature Solder Black
