Q-2P06800050.5M

Active

Amphenol Custom Cable

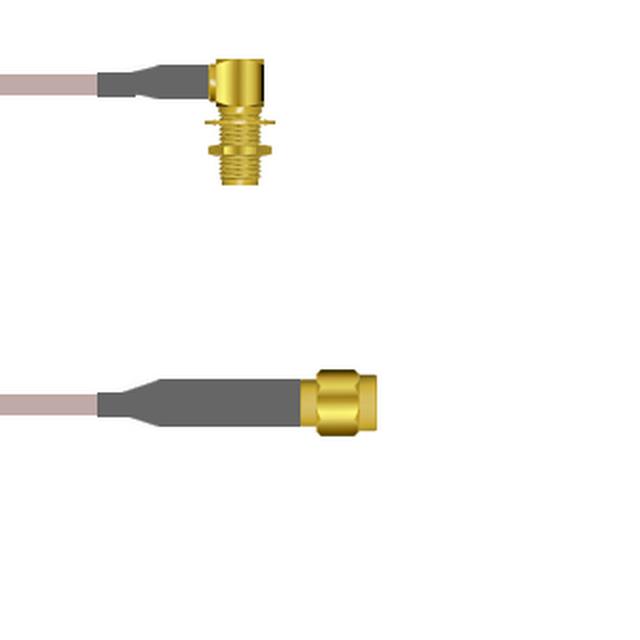

COAX CBL RP-SMA TO SMA 19.6"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO SMA 19.6"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P06800050.5M

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	RP-SMA to SMA

Part	Frequency - Max [Max]	Style	Length	Length	Cable Type	Color	Cable Impedance	2nd Contact Gender	2nd Connector Mounting Feature	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Type	Features	Overall Impedance	2nd Connector	1st Contact Gender	Connector Impedance	Length
Amphenol Custom Cable Q-2P0680005003I	3 GHz	RP-SMA to SMA	3 in	76.2 mm	RG-316	Copper	50 Ohms	Female	Bulkhead - Front Side Nut	RP-SMA Plug	Panel Mount	Free Hanging (In-Line)	Shielded	50 Ohms	SMA Jack Right Angle	Female	50 Ohms
Amphenol Custom Cable Q-2P06800050.5M	3 GHz	RP-SMA to SMA	19.69 "	50 cm	RG-316	Copper	50 Ohms	Female	Bulkhead - Front Side Nut	RP-SMA Plug	Panel Mount	Free Hanging (In-Line)	Shielded	50 Ohms	SMA Jack Right Angle	Female	50 Ohms
Amphenol Custom Cable Q-2P0680005001M	3 GHz	RP-SMA to SMA	39.4 in	1 m	RG-316	Copper	50 Ohms	Female	Bulkhead - Front Side Nut	RP-SMA Plug	Panel Mount	Free Hanging (In-Line)	Shielded	50 Ohms	SMA Jack Right Angle	Female	50 Ohms	3.3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to SMA RG-316 19.69" (500.00mm)

Technical documentation and resources

No documents available
