3404.2468.22

Active

SCHURTER Inc.

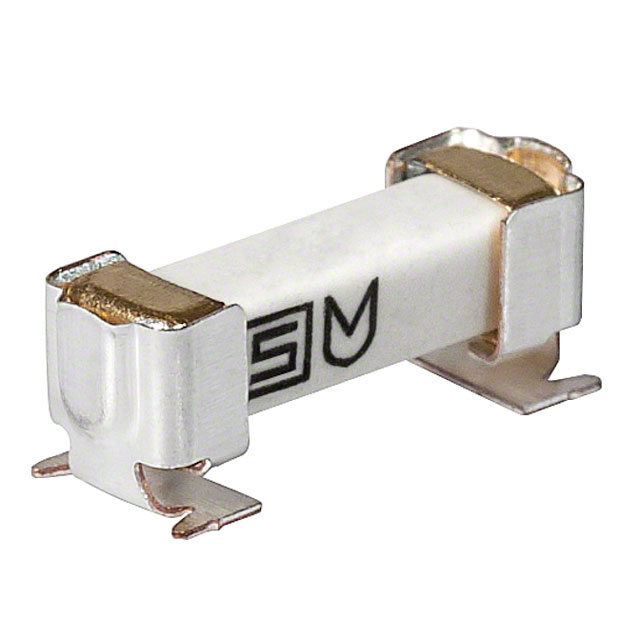

"UMK 250, 1.6 A, 250 VAC, 125 VDC, QUICK-ACTING F, BLISTER TAPE 33 CM REEL 1.000 PCS., FUSE, WITH CLIP, SMT, 11.3X3.6 MM\/

Search across all available documentation for this part.

Active

SCHURTER Inc.

"UMK 250, 1.6 A, 250 VAC, 125 VDC, QUICK-ACTING F, BLISTER TAPE 33 CM REEL 1.000 PCS., FUSE, WITH CLIP, SMT, 11.3X3.6 MM\/

Technical Specifications

Parameters and characteristics for this part

Specification	3404.2468.22

Approval Agency	cURus, VDE
Breaking Capacity @ Rated Voltage	200 A, 100 A
Current Rating (Amps)	1.6 A
Fuse Type	Board Mount
Melting I˛t	2.1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD, Square End Block with Clip
Response Time	Fast Blow
Size / Dimension [x]	0.445 "
Size / Dimension [x]	11.3 mm
Size / Dimension [y]	4.2 mm
Size / Dimension [y]	0.165 "
Size / Dimension [z]	0.157 "
Size / Dimension [z]	4 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

"UMK 250, 1.6 A, 250 VAC, 125 VDC, QUICK-ACTING F, BLISTER TAPE 33 CM REEL 1.000 PCS., FUSE, WITH CLIP, SMT, 11.3X3.6 MM\/

Part	Approval Agency	Package / Case	Fuse Type	Response Time	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Melting I˛t	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current Rating (Amps)	Breaking Capacity @ Rated Voltage
SCHURTER Inc. 3404.2468.22	cURus, VDE	2-SMD, Square End Block with Clip	Board Mount	Fast Blow	125 VDC	Surface Mount	85 °C	-40 °C	250 V	2.1	0.445 "	11.3 mm	4.2 mm	0.157 "	4 mm	0.165 "	1.6 A	100 A, 200 A
