HCP26DTD3Q04

Active

TE Connectivity Raychem Cable Protection

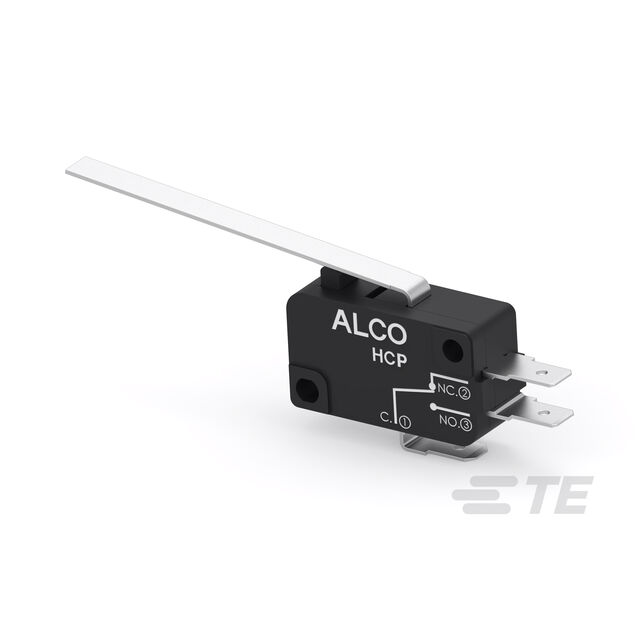

HCP26A, HVT FORCE, 0.187 TERM. EXT LVR

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HCP26A, HVT FORCE, 0.187 TERM. EXT LVR

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Circuit	Termination Style	Overtravel	Overtravel	Operating Force	Pretravel	Pretravel	Operating Position	Operating Position	Mechanical Life	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Switch Function	Differential Travel	Differential Travel
TE Connectivity Raychem Cable Protection HCP10DTE1S04	125 °C	-40 °C	Chassis Mount	SPDT	Quick Connect - 0.250" (6.3mm)	0.039 in	1 mm	190 gf	0.11 in	2.8 mm	15.3 mm	0.602 "	10000000 Cycles	10000 Cycles	125 V	10 A	Lever Straight	On-Mom	0.5 mm	0.02 in
TE Connectivity Raychem Cable Protection HCP16DTE5S04	125 °C	-40 °C	Chassis Mount	SPDT	Quick Connect - 0.250" (6.3mm)	0.045 in	1.1 mm	220 gf	0.106 in	2.7 mm	20.7 mm	0.815 in	10000000 Cycles	10000 Cycles	125 V	16 A	Lever Roller	On-Mom	0.45 mm	0.018 in
TE Connectivity Raychem Cable Protection HCP26DTD3Q04	125 °C	-40 °C	Chassis Mount	SPDT	Quick Connect - 0.187" (4.7mm)			110 gf	0.366 in	9.3 mm	15.3 mm	0.602 "	10000000 Cycles	10000 Cycles	125 V	26 A	Lever Straight	On-Mom	2.1 mm	0.083 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 A Snap Action Switch, Single Pole - Double Throw Configuration (Pole-Throw), Extended Lever, 125 VAC / 250 VAC, ALCOSWITCH HCP
