1-5-850B

Active

3M (TC)

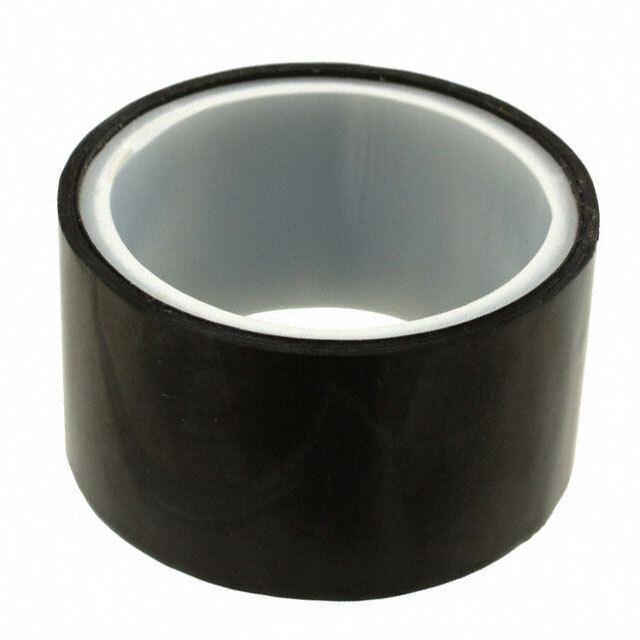

TAPE MASKING BLACK 1"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-5-850B

Active

3M (TC)

TAPE MASKING BLACK 1"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-5-850B

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	Black
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Masking
Thickness - Adhesive	1 mils
Thickness - Adhesive	0.025 mm
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	0.0009 in
Thickness - Backing, Carrier	0.9 mils
Thickness - Backing, Carrier	0.023 mm
Thickness [custom]	0.0019 "
Thickness [custom]	0.048 mm
Thickness [custom]	1.9 mils
Usage	Sealing, Splicing, Shipping, Packaging
Width [x]	25.4 mm
Width [x]	1 in

850B Series

Part	Shelf Life	Adhesive	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [x]	Width [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Usage	Tape Type	Backing, Carrier	Thickness [custom]	Thickness [custom]	Thickness [custom]	Width [y]	Width [y]	Width	Width	Width	Length [x]	Length [x]
3M (TC) 1-5-850B	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in	25.4 mm	1 in	16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	4.6 m	15 ft	5 yd	Packaging Sealing Shipping Splicing	Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils
3M (TC) 3M 850B 5" X 1.25"-25	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	31.75 mm	1.25 in			Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils	127 mm	5 in
3M (TC) 3M 850B 0.75" X 10"-25	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	254 mm	10 in			Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils			0.75 in	19.05 mm	0.75 in
3M (TC) 3M 850B CIRCLE-4"-100	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm					Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils
3M (TC) 3M 850B 8" X 9"-10	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	228.6 mm	9 "			Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils			8 in		203.2 mm
3M (TC) 850B-0.625-5	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	4.6 m	15 ft	5 yd		Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils			0.63 in	0.625 in	16 mm
3M (TC) 3M 850B 1" X 9"-25	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in	25.4 mm	1 in	16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	228.6 mm	9 "			Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils
3M (TC) 5-5-850B	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	4.6 m	15 ft	5 yd		Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils	127 mm	5 in
3M (TC) 8-5-850B	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm	4.6 m	15 ft	5 yd		Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils			8 in		203.2 mm
3M (TC) 3M 850B 0.5" X 5"-25	18 Months	Acrylic	Date of Manufacture	1 mils	0.025 mm	0.001 in			16 °C 60 °F	27 °C 80 °F	Black	0.0009 in	0.9 mils	0.023 mm					Masking	Polyester Film	0.0019 "	0.048 mm	1.9 mils			0.5 in	0.5 in	12.7 mm	5 in	127 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.14

Description

General part information

850B Series

Masking Tape Acrylic Adhesive Black 1.00" (25.40mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources
