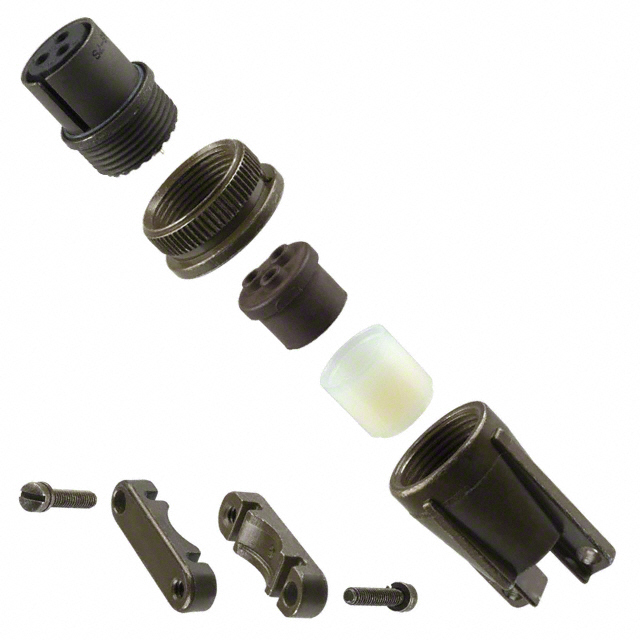

MS3106F-14S-7S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106F-14S-7S

Applications	Military, Marine
Cable Opening [custom]	10.3 mm
Cable Opening [custom]	0.406 in
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-7
Shielding	Unshielded

Part	Contact Finish - Mating	Connector Type	Ingress Protection	Shell Material	Qualification	Cable Opening [custom]	Cable Opening [custom]	Primary Material	Mounting Type	Applications	Insert Material	Shielding	Orientation	Color	Shell Finish	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size - Insert	Features
Amphenol Aerospace Operations MS3106F-14S-7S	Silver	Female Sockets Plug	Environment Resistant	Aluminum Alloy	MIL-DTL-5015	10.3 mm	0.406 in	Metal	Free Hanging (In-Line)	Marine Military	Neoprene	Unshielded	N	Olive Drab	Olive Drab Chromate over Cadmium	Military	-55 °C	125 °C	Copper Alloy	14S-7	Backshell Cable Clamp Coupling Nut
Amphenol Aerospace Operations MS3106F14S-2SY

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
