SGSMP3-400Q128

Active

BANNER ENGINEERING

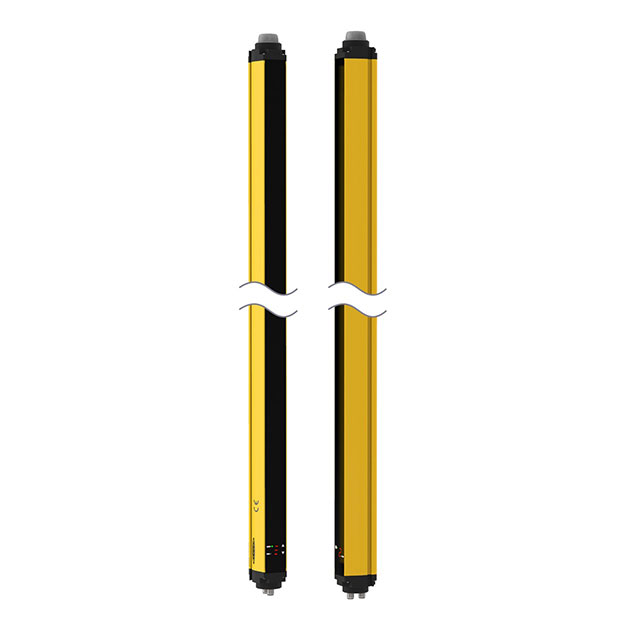

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	SGSMP3-400Q128

Beam Pitch	400 mm
Features	Muting Function
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	3
Operating Range [Max]	30 m
Operating Range [Min]	0.5 m
Protective Height [z]	800 mm
Voltage - Supply	24 VDC

Part	Voltage - Supply	Operating Range [Min]	Operating Range [Max]	Protective Height [z]	Features	Beam Pitch	Ingress Protection	Number of Beams
BANNER ENGINEERING SGSMP3-400Q128	24 VDC	0.5 m	30 m	800 mm	Muting Function	400 mm	IP65 - Dust Tight Water Resistant	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1641.01
Newark	Each	1	$ 1669.00

General part information

Light Curtain Muting Function
