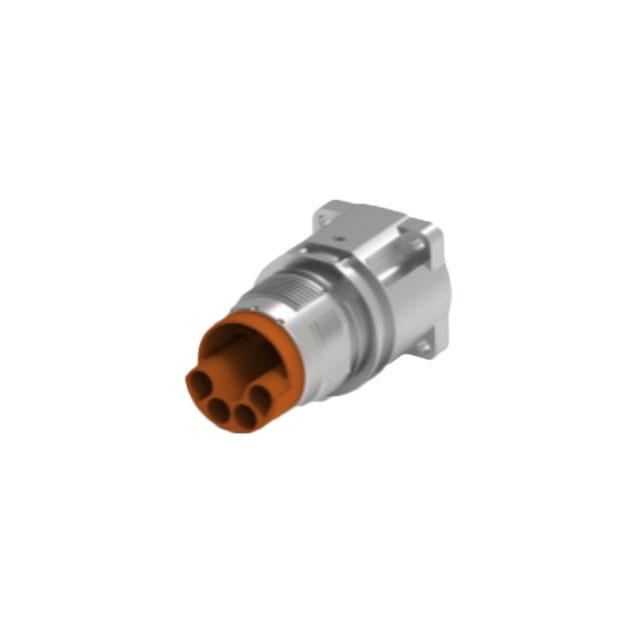

Specification	HEC011N00000200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	Connector, O-Ring
Includes Total Count	2 pcs
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	11
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	PE, Power
Shell Finish	Chromate
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-11
Shielding	Unshielded
Type	For Male Pins

HEC01 Series

Part	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Shape	Housing Color	Shell Finish	Mounting Feature	Shell Size - Insert	Mounting Type	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Includes Total Count	Includes	Position Types	Number of Positions	Shielding	Connector Type	Material Flammability Rating	Note	Orientation	Type	Insert Material
TE Intercontec HEC011N00000200000	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Silver	Chromate	Flange	M23-11	Panel Mount	Push-Twist	-20 °C	130 °C	2 pcs	Connector O-Ring	PE Power	11	Unshielded	Receptacle Housing	UL94 V-0	Contacts Not Included	Keyed	For Male Pins	Nylon 6/6 PA66 Polyamide
