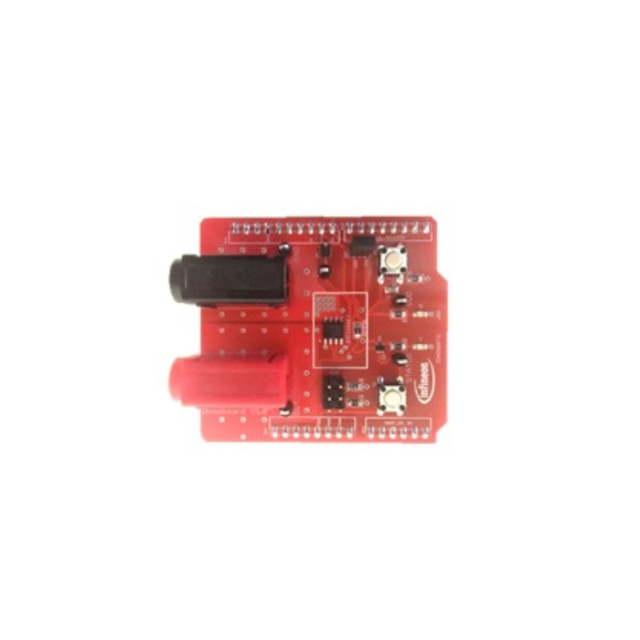

BTF3125EJDEMOBOARDTOBO1

Active

Infineon Technologies

DEMONSTRATION BOARD, BTF3125EJ, 12V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOperating Instructions EN

BTF3125EJDEMOBOARDTOBO1

Active

Infineon Technologies

DEMONSTRATION BOARD, BTF3125EJ, 12V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsOperating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTF3125EJDEMOBOARDTOBO1

Contents	Board(s)
Function	Switch
Interconnect System	Arduino R3 Shield
Platform	Arduino
Suggested Programming Environment	Dave
Type	Power Management
Utilized IC / Part	BTF3125EJ

BTF3125 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Grade	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Package / Case	Package / Case	Interface	Number of Outputs	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Supplier Device Package	Qualification	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Input Type	Output Type	Rds On (Typ)	Switch Type	Fault Protection	Mounting Type	Type	Contents	Suggested Programming Environment	Interconnect System	Function	Utilized IC / Part	Platform
Infineon Technologies BTF3125EJXUMA1	150 °C	-40 °C	Low Side	Automotive	3 V	28 V	0.154 in	8-SOIC	3.9 mm	PWM	1	1:1	2 A	PG-TDSO-8-31	AEC-Q100	5.5 V	3 V	Non-Inverting	N-Channel	110 mOhm	General Purpose	Over Current Over Voltage Short Circuit	Surface Mount
Infineon Technologies BTF3125EJDEMOBOARDTOBO1																								Power Management	Board(s)	Dave	Arduino R3 Shield	Switch	BTF3125EJ	Arduino

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.20
Newark	Each	1	$ 50.04

Description

General part information

BTF3125 Series

12V Evaluation board (Arduino compatible) for Medium Ohmic Power Switch with over temperature protection allowing auto restart, slew rate control, PWM upto 20kHz capability and dedicated STATUS PIN, very low power DMOS leakage current, Insrush current capability, active freewheeling and output voltage active clamping for inductive load.

Documents

Technical documentation and resources

Operating Instructions EN

Datasheet
