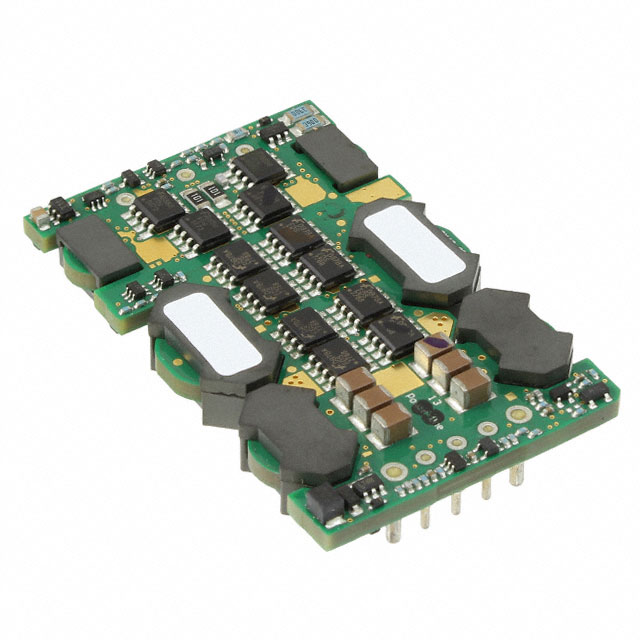

QME48T40010-NGB0G

Active

Bel Power Solutions

DC DC CONVERTER 1V 40W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 1V 40W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 1V 40W

Part	Power (Watts)	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Voltage - Isolation	Efficiency	Control Features	Current - Output (Max) [Max]	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]
Bel Power Solutions QME48T40010-NGB0G	40 W	36 V	ITE (Commercial)	85 °C	-40 °C	OCP, OTP, OVP, Remote On/Off, UVLO	Isolated Module	1	2.3 in	58.4 mm	0.43 "	1.45 in	36.8 mm	10.8 mm	1/4 Brick, 8-DIP Module	2000 V	80 %	Active Low, Enable	40 A	1 V	Through Hole	75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	360	$ 76.22

General part information

Isolated Module DC DC Converter 1 Output 1V 40A 36V - 75V Input

Technical documentation and resources

No documents available
