CPDQC5V0AU-HF

Active

Comchip Technology

TVS DIODE 5VWM 15V 0402C/SOD923F

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 5VWM 15V 0402C/SOD923F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

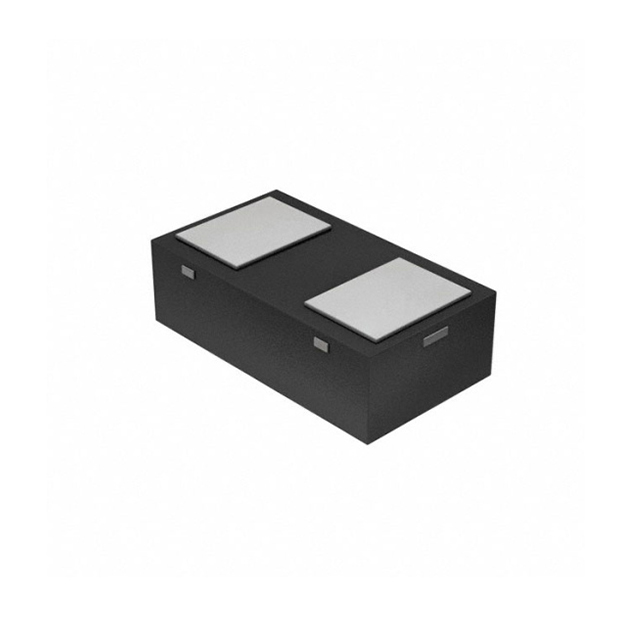

15V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CPDQC5V0AU-HF	CPDQC5 Series

Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Capacitance @ Frequency	0.45 pF	0.2 - 130 pF
Current - Peak Pulse (10/1000çs)	-	11 A
Current - Peak Pulse (10/1000µs)	4 A	3 - 15 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 - 150 ¯C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Package / Case	0402 (1006 Metric)	0402 (1006 Metric), SOD-923
Power - Peak Pulse	60 W	36 - 180 W
Power Line Protection	False	False
Supplier Device Package	0402C, SOD-923F	0402C, SOD-923F
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	5.8 V	5.6 - 6.1 V
Voltage - Clamping (Max) @ Ipp	-	12 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V	14.5 - 20 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

TVS DIODE 5VWM 17VC 0402/SOD923F

Part	Power - Peak Pulse	Capacitance @ Frequency	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Reverse Standoff (Typ)	Applications	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Current - Peak Pulse (10/1000çs)
Comchip Technology CPDQC5V0P-HF	85 W	6 pF	0402C, SOD-923F	5.6 V	5 A	1	Surface Mount	17 V	0402 (1006 Metric)	-40 °C	125 ¯C	Zener	5 V	General Purpose
Comchip Technology CPDQC5V0U-HF	180 W	130 pF	0402C, SOD-923F	6 V	15 A		Surface Mount		SOD-923			Zener	5 V	General Purpose	1	12 V
Comchip Technology CPDQC5V0C-HF	58 W	25 pF	0402C, SOD-923F	6.1 V	4 A	1	Surface Mount	14.5 V	SOD-923			Zener	5 V	General Purpose
Comchip Technology CPDQC5V0AU-HF	60 W	0.45 pF	0402C, SOD-923F	5.8 V	4 A		Surface Mount	15 V	0402 (1006 Metric)	-55 °C	125 ¯C	Zener	5 V	General Purpose	1
Comchip Technology CPDQC5V0CSP-HF	60 W	0.3 pF	0402C, SOD-923F	6 V	3 A	1	Surface Mount	20 V	0402 (1006 Metric)	-55 °C	150 °C	Zener	5 V	General Purpose
Comchip Technology CPDQC5V0SC-HF	36 W	0.2 pF	0402C, SOD-923F	6 V		1	Surface Mount	18 V	0402 (1006 Metric)	-55 °C	150 °C	Zener	5 V	General Purpose
Comchip Technology CPDQC5V0R-HF		24 pF	0402C, SOD-923F	5.6 V		1	Surface Mount		0402 (1006 Metric)	-40 °C	150 °C	Zener	5 V	General Purpose		12 V	11 A
