EVAL1K4WZVSFBCFD7TOBO1
ActiveTHIS IS A HIGH-PERFORMANCE EVALUATION BOARD EXAMPLE WITH A COMPLETE INFINEON SOLUTION, INCLUDING HIGH VOLTAGE AND LOW VOLTAGE POWER MOSFETS, CONTROLLERS AND DRIVERS. THIS BOARD DEMONSTRATES A VERY EFFECTIVE WAY TO DESIGN THE HIGH VOLTAGE DC-DC STAGE OF A SERVER OR INDUSTRIAL SMPS FULFILLING THE HIGHEST STANDARD OF EFFICIENCY AND RELIABILITY.
Deep-Dive with AI
Search across all available documentation for this part.
EVAL1K4WZVSFBCFD7TOBO1
ActiveTHIS IS A HIGH-PERFORMANCE EVALUATION BOARD EXAMPLE WITH A COMPLETE INFINEON SOLUTION, INCLUDING HIGH VOLTAGE AND LOW VOLTAGE POWER MOSFETS, CONTROLLERS AND DRIVERS. THIS BOARD DEMONSTRATES A VERY EFFECTIVE WAY TO DESIGN THE HIGH VOLTAGE DC-DC STAGE OF A SERVER OR INDUSTRIAL SMPS FULFILLING THE HIGHEST STANDARD OF EFFICIENCY AND RELIABILITY.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL1K4WZVSFBCFD7TOBO1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 117 A |
| Frequency - Switching | 100 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 1.4 kW |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ICE5QSAG, XMC4200 |
| Voltage - Input [Max] | 410 V |
| Voltage - Input [Min] | 350 V |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVAL1K4 Series

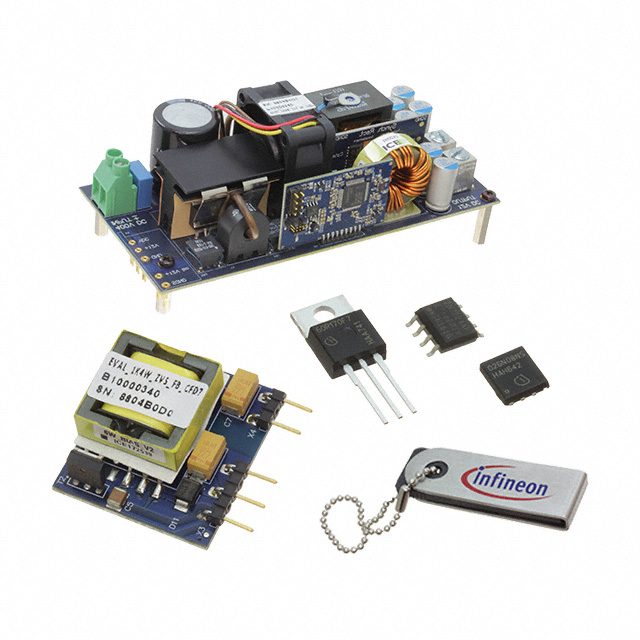

This is a high-performance evaluation board example with a complete Infineon solution, including high voltage and low voltage power MOSFETs, controllers and drivers. This board demonstrates a very effective way to design the high voltage DC-DC stage of a server or industrial SMPS fulfilling the highest standard of efficiency and reliability. The overall best-in-class performance is achieved because of a mix of proper control techniques and best-in-class power device selection. Key Infineon products used to achieve this performance level include, 600V CoolMOS™ CFD7 SJ MOSFET (IPP60R170CFD7), EiceDRIVER™ 2EDN advanced dual-channel gate driver IC (2EDN7524F), OptiMOS™ 5 80V synchronous rectification MOSFETs (BSC026N08NS5), XMC™ microcontroller (XMC4200-F64K256 BA) and an auxiliary supply solution featuring off-line SMPS current mode controller IC (ICE5QSAG) with an integrated 800 V CoolMOS™ device.
