KX14-40K2D-RE

Obsolete

JAE Electronics

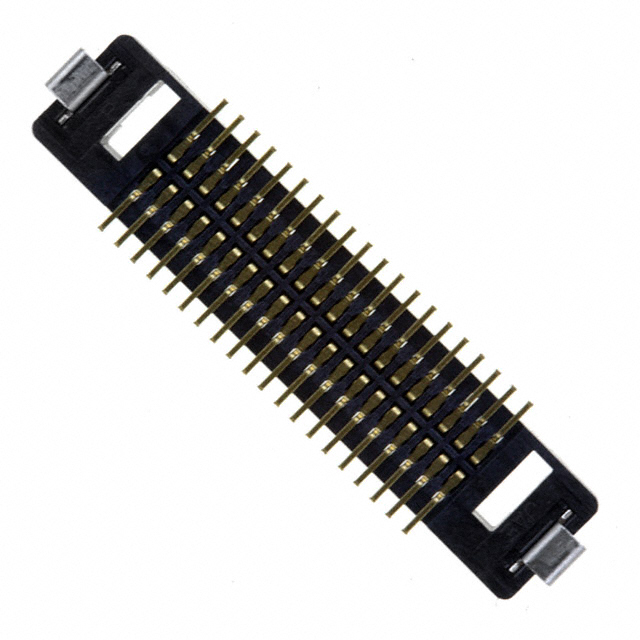

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-40K2D-RE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Positions	Number of Rows	Mated Stacking Heights	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Features	Height Above Board	Height Above Board
JAE Electronics KX14-40K2D-RE	40	2	4 mm 5 mm 6 mm	Surface Mount	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in	Gold	Board Guide Solder Retention
JAE Electronics KX14-40K5D-RE	40	2	7 mm 8 mm 9 mm	Surface Mount	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in	Gold	Board Guide Solder Retention	0.258 "	6.55 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
