KE10.6100.151

Active

SCHURTER Inc.

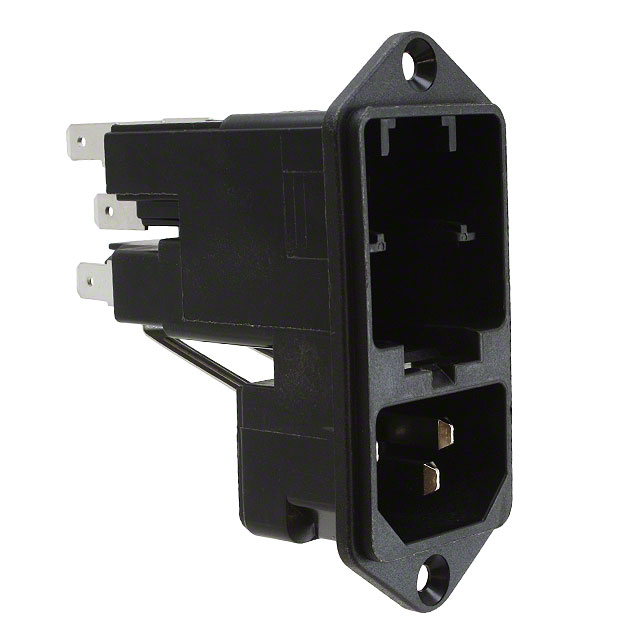

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE/VOLTAGE SELECTOR ST 1 PORT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE/VOLTAGE SELECTOR ST 1 PORT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	KE10.6100.151	KE10.6100 Series

Accomodates a Fuse	True	True
Approval Agency	cURus, ENEC	UL, ENEC, CSA, cURus, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate	Drawer Sold Separate
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	27.5 mm	27.5 mm
Panel Cutout Dimensions [y]	52.5 mm	52.5 mm
Panel Thickness	-	2.5 mm
Panel Thickness	-	0.098 in
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14

Part	Voltage Rating - Appliance Inlet	Material Flammability Rating	Filter Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Features	Fuse Holder, Drawer	Connector Style	Ingress Protection	Connector Type	Panel Thickness [x]	Panel Thickness [x]	Mounting Type	Termination	Termination
SCHURTER Inc. KE10.6100.505	250 VAC	UL94 V-0	Unfiltered - Commercial	CSA, ENEC, UL	27.5 mm	52.5 mm	10 A	Voltage Selector	Drawer Sold Separate	IEC 320-C14	IP40	Receptacle, Male Blades - Module
SCHURTER Inc. KE10.6100.109	250 VAC	UL94 V-0	Unfiltered - Commercial	CSA, ENEC, UL	27.5 mm	52.5 mm	10 A	Voltage Selector	Drawer Sold Separate	IEC 320-C14	IP40	Receptacle, Male Blades - Module	2.5 mm	0.098 in	Panel Mount, Snap-In	0.189 ", 4.8 mm	Quick Connect
SCHURTER Inc. KE10.6100.151	250 VAC	UL94 V-0	Unfiltered - Commercial	cURus, ENEC	27.5 mm	52.5 mm	10 A	Voltage Selector	Drawer Sold Separate	IEC 320-C14	IP40	Receptacle, Male Blades - Module			Flange, Panel Mount	0.189 ", 4.8 mm	Quick Connect
