CD-14BFFA-LL7001

Active

Amphenol LTW

CONN PLUG FMALE 14P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG FMALE 14P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	CD-14BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded

Part	Mounting Type	Contact Finish - Mating	Fastening Type	Color	Shielding	Orientation	Shell Material	Primary Material	Insert Material	Backshell Material, Plating	Contact Material	Current Rating (Amps)	Features	Shell Size - Insert	Ingress Protection	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Amphenol LTW CD-14BFFA-LL7001	Free Hanging (In-Line)	Gold	Bayonet Lock	Black	Unshielded	Keyed	Glass Filled Nylon Polyamide (PA)	Plastic	Polyamide (PA) Nylon Glass Filled	Nylon Polyamide (PA)	Copper Alloy	5 A	Backshell Coupling Nut	C	IP67 - Dust Tight Waterproof	Female Sockets Plug	-40 °C	105 ░C	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

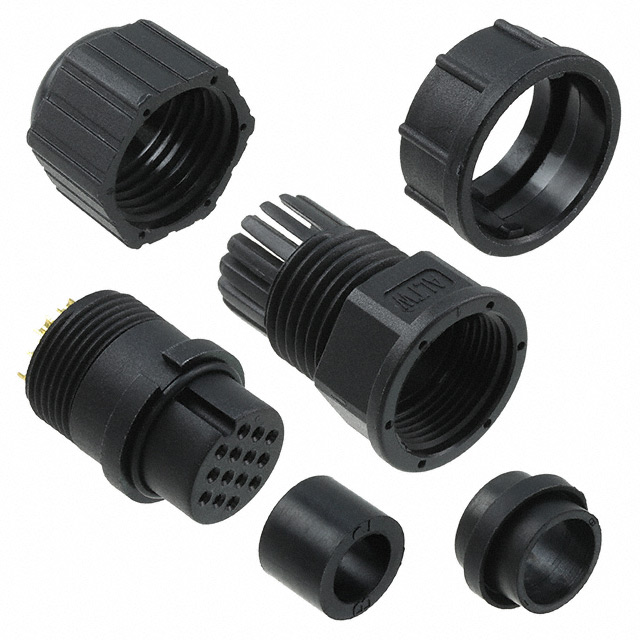

14 Position Circular Connector Plug, Female Sockets Solder Cup
