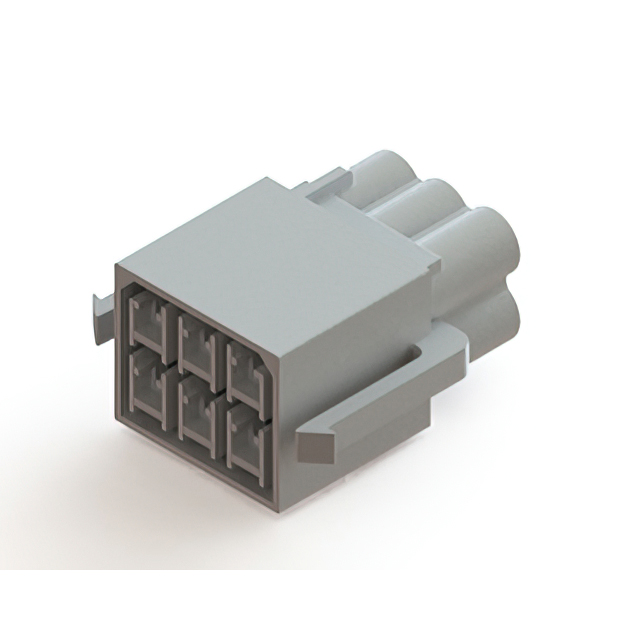

567-006-000-410

Active

EDAC Inc.

CONN RCPT HSG 6POS 5.00MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN RCPT HSG 6POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	567-006-000-410

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing	0.232 in
Row Spacing	5.9 mm

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Type	Color	Pitch [x]	Pitch [x]	Contact Termination	Number of Positions	Insulation Material	Row Spacing	Row Spacing	Features	Mounting Type	Note	Number of Rows
EDAC Inc. 567-006-000-310	Latch Holder	-40 °C	105 ░C	Male Pin	Header	White	5 mm	0.197 in	Crimp	6	Polybutylene Terephthalate (PBT)	0.232 in	5.9 mm	Waterproof	Free Hanging (In-Line)	Contacts Not Included	2
EDAC Inc. 567-006-000-410	Latch Lock	-40 °C	105 ░C	Female Socket	Receptacle	White	5 mm	0.197 in	Crimp	6	Polybutylene Terephthalate (PBT)	0.232 in	5.9 mm	Waterproof	Free Hanging (In-Line)	Contacts Not Included	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 1.91

General part information

6 Rectangular Connectors - Housings Receptacle White 0.197" (5.00mm)

Technical documentation and resources
