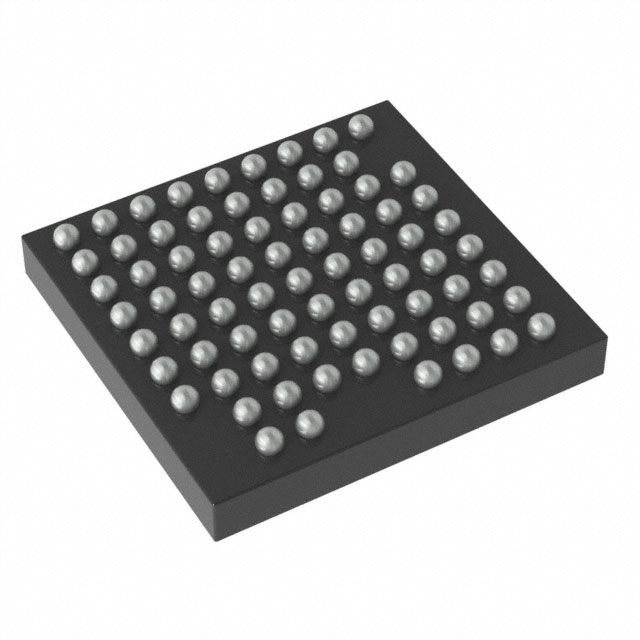

CY8C4248FNI-BL583T
ActiveInfineon Technologies
IC MCU 32BIT 256KB FLASH 76WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
CY8C4248FNI-BL583T
ActiveInfineon Technologies
IC MCU 32BIT 256KB FLASH 76WLCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CY8C4248FNI-BL583T | CY8C4248 Series |
|---|---|---|
| Connectivity | SPI, UART/USART, IrDA, Microwire, I2C, SSP, LINbus, SmartCard | SPI, UART/USART, IrDA, Microwire, I2C, SSP, LINbus, SmartCard, USB, FIFO, CANbus |
| Connectivity | - | SPI, I2C, SmartCard, USB, IrDA, UART/USART, LINbus, SSP, CANbus, Microwire |
| Core Processor | ARM® Cortex®-M0 | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core, 32-Bit |
| Data Converters | - | D/A 2x8b, D/A 2x7b, A/D 16x12b, A/D 16x12b SAR, D/A 4x8b, 12b, 7/8b |
| Data Converters | - | 7 - 12 |
| Data Converters | - | 4 - 16 |
| Data Converters [custom] | 2, 16 | 1 - 16 |
| Data Converters [custom] | 12b | 12b |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 36 | 36 - 98 |
| Operating Temperature [Max] | 85 °C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal, External |
| Package / Case | WLCSP, 76-UFBGA | 68-VFQFN Exposed Pad, 64-LQFP, WLCSP, 76-UFBGA, 56-UFQFN Exposed Pad, 124-VFBGA, 76-XFBGA |
| Peripherals | Brown-out Detect/Reset, LVD, Cap Sense, DMA LCD, SmartSense, SmartCard, POR, WDT, Bluetooth, PWM | POR, CapSense, SmartSense, Brown-out Detect/Reset, WDT, LVD, DMA, PWM, Bluetooth, SmartCard, DMA LVD, Cap Sense, DMA LCD, LCD, Temp Sensor |
| Program Memory Size | 256 KB | 256 KB |
| Program Memory Type | FLASH | FLASH |
| Qualification | - | AEC-Q100 |
| Speed | 48 MHz | 48 MHz |
| Supplier Device Package | 76-WLCSP | 68-QFN (8x8), 64-TQFP (10x10), 76-WLCSP, 56-QFN (7x7), 124-VFBGA (9x9) |
| Supplier Device Package [x] | 4.04 | 4.04 |
| Supplier Device Package [y] | 3.87 | 3.87 |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.71 V | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 4.66 | |
CY8C4248 Series
IC MCU 32BIT 256KB FLASH 68QFN
| Part | Connectivity [custom] | Program Memory Size | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Data Converters | Core Processor | Oscillator Type | Speed | Program Memory Type | Number of I/O | Package / Case | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Mounting Type | Core Size | Peripherals | Data Converters [custom] | Data Converters [custom] | Supplier Device Package [x] | Supplier Device Package [y] | Connectivity | Data Converters [custom] | Grade | Qualification | Data Converters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies CY8C4248LTQ-L485 | CANbus, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB | 256 KB | 105 °C | -40 °C | 68-QFN (8x8) | A/D 16x12b, D/A 2x7b, D/A 2x8b | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 57 | 68-VFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Brown-out Detect/Reset, CapSense, DMA, LVD, POR, PWM, SmartSense, WDT | |||||||||
Infineon Technologies CY8C4248AZI-L485T | CANbus, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB | 256 KB | 85 °C | -40 °C | 64-TQFP (10x10) | A/D 16x12b SAR, D/A 4x8b | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 53 | 64-LQFP | 1.71 V | 5.5 V | Surface Mount | 32-Bit | ||||||||||
Infineon Technologies CY8C4248FNI-BL573T | 256 KB | 85 °C | -40 °C | 76-WLCSP | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 76-UFBGA, WLCSP | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, CapSense, DMA, LVD, POR, PWM, SmartCard, SmartSense, WDT | 7, 8, 12 | 1, 16 | 4.04 | 3.87 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | ||||||
Infineon Technologies CY8C4248LQI-BL573 | 256 KB | 85 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, DMA LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||||
Infineon Technologies CY8C4248LQQ-BL583 | 256 KB | 105 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, Cap Sense, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||||
Infineon Technologies CY8C4248FNI-BL593T | 256 KB | 85 °C | -40 °C | 76-WLCSP | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 76-UFBGA, WLCSP | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, CapSense, DMA, LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 7, 8, 12 | 1, 16 | 4.04 | 3.87 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | ||||||
Infineon Technologies CY8C4248FNI-BL553T | 256 KB | 85 °C | -40 °C | 76-WLCSP | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 76-UFBGA, WLCSP | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, CapSense, DMA, LVD, POR, PWM, SmartCard, SmartSense, WDT | 7, 8, 12 | 1, 16 | 4.04 | 3.87 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | ||||||
Infineon Technologies CY8C4248BZS-L489T | 256 KB | 105 °C | -40 °C | 124-VFBGA (9x9) | 12b, 7/8b | ARM® Cortex®-M0 | External, Internal | 48 MHz | FLASH | 98 | 124-VFBGA | 1.71 V | 5.5 V | Surface Mount | 32-Bit | Brown-out Detect/Reset, CapSense, DMA, LCD, LVD, POR, PWM, Temp Sensor, WDT | CANbus, FIFO, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB | Automotive | AEC-Q100 | 4, 16 | ||||||
Infineon Technologies CY8C4248LQI-BL543 | 256 KB | 85 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||||
Infineon Technologies CY8C4248BZI-L469 | 256 KB | 85 °C | -40 °C | 124-VFBGA (9x9) | A/D 16x12b, D/A 2x7b, D/A 2x8b | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 96 | 124-VFBGA | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Brown-out Detect/Reset, CapSense, DMA, LVD, POR, PWM, SmartSense, WDT | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | |||||||||
Infineon Technologies CY8C4248BZI-L489 | CANbus, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB | 256 KB | 85 °C | -40 °C | 124-VFBGA (9x9) | A/D 16x12b SAR, D/A 4x8b | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 98 | 124-VFBGA | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Brown-out Detect/Reset, Cap Sense, DMA, LCD, LVD, POR, PWM, SmartSense, WDT | |||||||||
Infineon Technologies CY8C4248LTI-L485 | CANbus, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB | 256 KB | 85 °C | -40 °C | 68-QFN (8x8) | A/D 16x12b SAR, D/A 4x8b | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 57 | 68-VFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Brown-out Detect/Reset, Cap Sense, DMA, LCD, LVD, POR, PWM, SmartSense, WDT | |||||||||
Infineon Technologies CY8C4248BZI-L479 | 256 KB | 85 °C | -40 °C | 124-VFBGA (9x9) | A/D 16x12b, D/A 2x7b, D/A 2x8b | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 98 | 124-VFBGA | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Brown-out Detect/Reset, CapSense, DMA, LCD, LVD, POR, PWM, SmartSense, WDT | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB | |||||||||
Infineon Technologies CY8C4248LQQ-BL583T | 256 KB | 105 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, Cap Sense, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||||
Infineon Technologies CY8C4248LQI-BL573T | 256 KB | 85 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, DMA LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||||
Infineon Technologies CY8C4248FNI-BL583T | 256 KB | 85 °C | -40 °C | 76-WLCSP | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 76-UFBGA, WLCSP | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, Cap Sense, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | 4.04 | 3.87 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||
Infineon Technologies CY8C4248AZI-L475 | 256 KB | 85 °C | -40 °C | 64-TQFP (10x10) | A/D 16x12b, D/A 2x7b, D/A 2x8b | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 53 | 64-LQFP | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Brown-out Detect/Reset, CapSense, DMA, LCD, LVD, POR, PWM, SmartSense, WDT | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB | |||||||||
Infineon Technologies CY8C4248LQI-BL563 | 256 KB | 85 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||||
Infineon Technologies CY8C4248FNI-BL483T | 256 KB | 85 °C | -40 °C | 76-WLCSP | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 76-UFBGA, WLCSP | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, Cap Sense, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | 4.04 | 3.87 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||
Infineon Technologies CY8C4248LQI-BL473T | 256 KB | 85 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, DMA LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b | ||||||||
Infineon Technologies CY8C4248LQI-BL593 | 256 KB | 85 °C | -40 °C | 56-QFN (7x7) | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 56-UFQFN Exposed Pad | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, CapSense, DMA, LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 7, 8, 12 | 1, 16 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | ||||||||
Infineon Technologies CY8C4248FLI-BL483T | 256 KB | 85 °C | -40 °C | 76-WLCSP | ARM® Cortex®-M0 | Internal | 48 MHz | FLASH | 36 | 76-XFBGA, WLCSP | 1.71 V | 5.5 V | Surface Mount | 32-Bit Single-Core | Bluetooth, Brown-out Detect/Reset, Cap Sense, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT | 2, 16 | 4.04 | 3.87 | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | 12b |
Description
General part information
CY8C4248 Series
ARM® Cortex®-M0 PSOC® 4 CY8C4xx8 BLE Microcontroller IC 32-Bit Single-Core 48MHz 256KB (256K x 8) FLASH 76-WLCSP (4.04×3.87)
