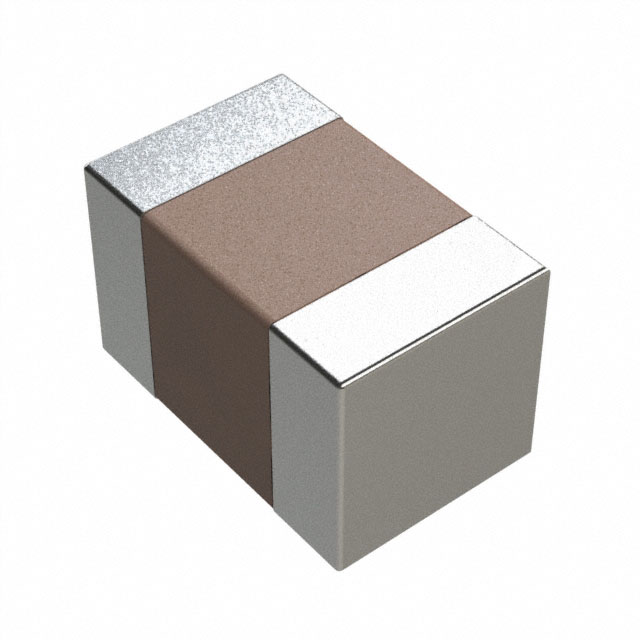

CV201210-6R8K

Active

Bourns Inc.

FIXED IND 6.8UH 15MA 1 OHM SMD

Deep-Dive with AI

DocumentsDesign Kits Inductive Components Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CV201210-6R8K

Current Rating (Amps)	0.015 A
DC Resistance (DCR) [Max]	1 Ohm
Frequency - Self Resonant	29 MHz
Height - Seated (Max) [Max]	1.45 mm
Height - Seated (Max) [Max]	0.057 in
Inductance	6.8 µH
Inductance Frequency - Test	4 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Shielding	Shielded
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805 (2012 Metric)
Tolerance	10 %
Type	Multilayer

CV201210 Series

Part	Inductance Frequency - Test	Mounting Type	Frequency - Self Resonant	Supplier Device Package	Inductance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material - Core	Shielding	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	DC Resistance (DCR) [Max]	Q @ Freq	DC Resistance (DCR)
Bourns Inc. CV201210-5R6K	4 MHz	Surface Mount	32 MHz	0805 (2012 Metric)	5.6 µH	Multilayer	1.45 mm	0.057 in	2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	0.015 A	-55 °C	125 °C	10 %	0805
Bourns Inc. CV201210-3R3K	10 MHz	Surface Mount	41 MHz	0805 (2012 Metric)	3.3 µH	Multilayer	1.45 mm	0.057 in	2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	30 mA	-55 °C	125 °C	10 %	0805	800 mOhm	10 MHz 45
Bourns Inc. CV201210-68NK	50 MHz	Surface Mount	280 MHz	0805 (2012 Metric)	68 nH	Multilayer			2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	300 mA	-55 °C	125 °C	10 %	0805		15 50 MHz	200 mOhm
Bourns Inc. CV201210-R68K	25 MHz	Surface Mount	105 MHz	0805 (2012 Metric)	0.68 µH	Multilayer	1.45 mm	0.057 in	2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	150 mA	-55 °C	125 °C	10 %	0805	800 mOhm	25 25 MHz
Bourns Inc. CV201210-R82K	25 MHz	Surface Mount	100 MHz	0805 (2012 Metric)	820 nH	Multilayer	1.45 mm	0.057 in	2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	150 mA	-55 °C	125 °C	10 %	0805	1 Ohm	25 25 MHz
Bourns Inc. CV201210-120K	2 MHz	Surface Mount	22 MHz	0805 (2012 Metric)	12 µH	Multilayer	1.45 mm	0.057 in	2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	5 mA	-55 °C	125 °C	10 %	0805	1.25 Ohm	2 MHz 45
Bourns Inc. CV201210-R22K	25 MHz	Surface Mount	170 MHz	0805 (2012 Metric)	220 nH	Multilayer			2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	0.25 A	-55 °C	125 °C	10 %	0805	500 mOhm	20 25 MHz
Bourns Inc. CV201210-R12K	25 MHz	Surface Mount	220 MHz	0805 (2012 Metric)	120 nH	Multilayer			2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	0.25 A	-55 °C	125 °C	10 %	0805	300 mOhm	20 25 MHz
Bourns Inc. CV201210-6R8K	4 MHz	Surface Mount	29 MHz	0805 (2012 Metric)	6.8 µH	Multilayer	1.45 mm	0.057 in	2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	0.015 A	-55 °C	125 °C	10 %	0805	1 Ohm
Bourns Inc. CV201210-1R8K	10 MHz	Surface Mount	55 MHz	0805 (2012 Metric)	1.8 µH	Multilayer			2 mm	0.079 in	0.049 in	1.25 mm	Ferrite	Shielded	50 mA	-55 °C	125 °C	10 %	0805		10 MHz 45
