912-295
ActiveBivar Inc.

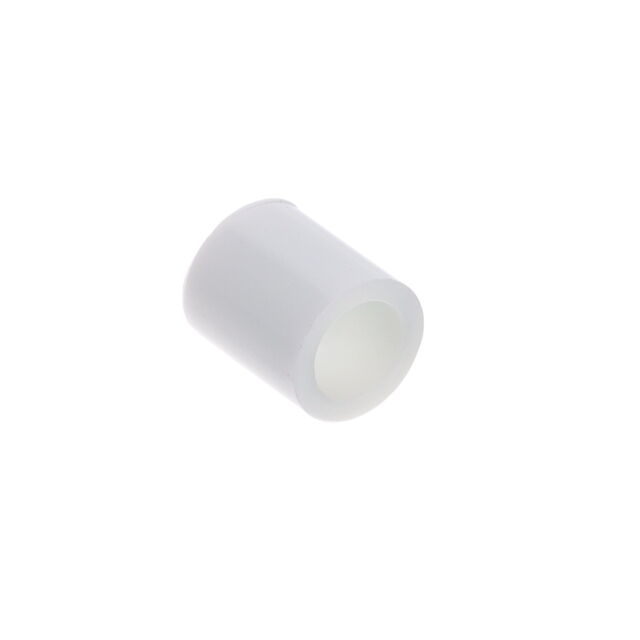

NYLON TUBULAR, 0.295 IN. LENGTH, 0.250 OD, 0.171 ID, WHITE / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
912-295
ActiveBivar Inc.
NYLON TUBULAR, 0.295 IN. LENGTH, 0.250 OD, 0.171 ID, WHITE / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 912-295 |
|---|---|
| Between Board Height | 7.5 mm |
| Between Board Height | 0.295 in |
| Color | Natural |
| Diameter - Inside [diameter] | 4.34 mm |
| Diameter - Inside [diameter] | 0.171 in |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Female |
| Length - Overall | 7.5 mm, 0.295 in |
| Material | Nylon |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
912-295 Series
Round Spacer Unthreaded Nylon 0.295" (7.50mm) Natural
Documents
Technical documentation and resources
