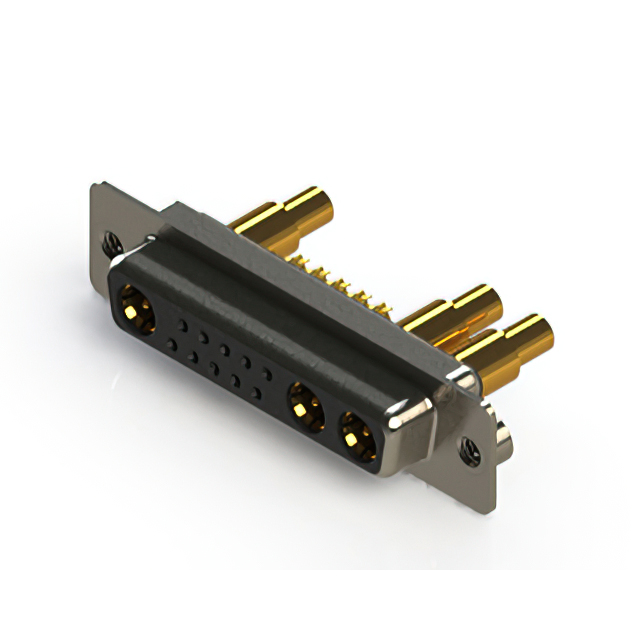

628-13W3622-7N2

Active

EDAC Inc.

CONN D-SUB RCPT 13POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-13W3622-7N2

Active

EDAC Inc.

CONN D-SUB RCPT 13POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-13W3622-7N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Voltage Rating	125 VDC

628-13W Series

...

Part	Connector Type	Connector Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Positions [custom]	Number of Positions [custom]	Color	Shell Size, Connector Layout	Shell Size, Connector Layout	Features	Termination	Current Rating (Amps)	Contact Finish	Contact Type	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Material Flammability Rating	Mounting Type	Voltage Rating	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Current Rating (Amps)	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-13W3624-4TE	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	M3	10	3	Black	13C3 13W3 B DB	3	Board Lock Shielded	Solder	5 A 40 A	Gold	Signal and Power	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Through Hole	125 VDC
EDAC Inc. 628-13W3622-7N2	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	4-40 Board Side			Black	13C3 13W3 B DB	3	Shielded			Gold	Coax Signal	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Free Hanging (In-Line)	125 VDC	Nickel Plated Steel	10	3
EDAC Inc. 628-13W3224-2ND	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	Board Side (M3)	10	3	Black	13C3 13W3 B DB	3	Board Lock Shielded	Solder	5 A 20 A	Gold	Signal and Power	Polyester Thermoplastic			2	UL94 V-0	Through Hole	125 VDC	Nickel Plated Steel			Flash
EDAC Inc. 628-13W3624-1N6	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	4-40	10	3	Black	13C3 13W3 B DB	3	Board Lock Shielded	Solder		Gold	Signal and Power	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Through Hole	125 VDC	Nickel Plated Steel				10A 5A
EDAC Inc. 628-13W3624-5TC	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C				Black	13C3 13W3 B DB	3	Shielded	Solder		Gold	Coax Signal	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Through Hole	125 VDC		10	3			M3	M3
EDAC Inc. 628-13W3624-4N5	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	4-40 Board Side	10	3	Black	13C3 13W3 B DB	3	Board Lock Shielded	Solder	5 A 40 A	Gold	Signal and Power	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Through Hole	125 VDC	Nickel Plated Steel
EDAC Inc. 628-13W3622-1T1	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	Housing/Shell (Unthreaded)	10	3	Black	13C3 13W3 B DB	3	Shielded			Gold	Signal and Power	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Free Hanging (In-Line)	125 VDC					10A 5A
EDAC Inc. 628-13W3624-5TB	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	Board Side (M3)			Black	13C3 13W3 B DB	3	Shielded	Solder		Gold	Coax Signal	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Through Hole	125 VDC		10	3
EDAC Inc. 628-13W3622-5N2	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C	4-40 Board Side			Black	13C3 13W3 B DB	3	Shielded			Gold	Coax Signal	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Free Hanging (In-Line)	125 VDC	Nickel Plated Steel	10	3
EDAC Inc. 628-13W3624-5NC	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	-55 °C	125 °C				Black	13C3 13W3 B DB	3	Shielded	Solder		Gold	Coax Signal	Polyester Thermoplastic	0.76 Ám	30 Áin	2	UL94 V-0	Through Hole	125 VDC	Nickel Plated Steel	10	3			M3	M3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 20.55

Description

General part information

628-13W Series

13 (10 + 3 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
