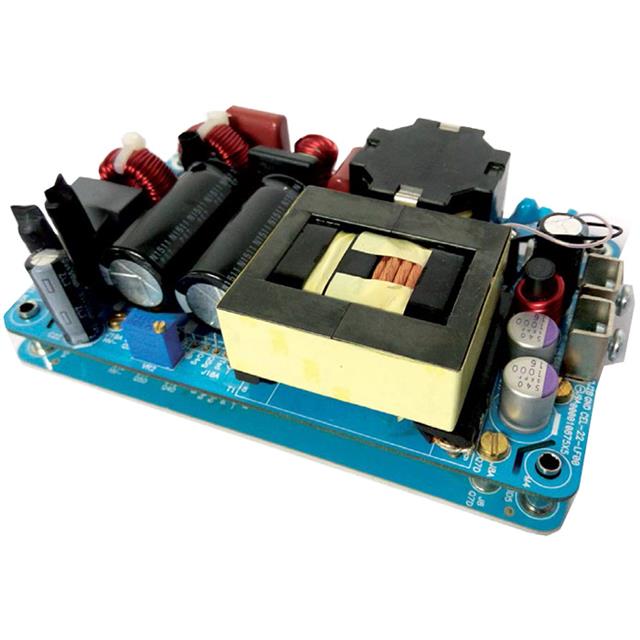

MWLC550-1030

Active

EOS Power

AC/DC CONVERTER 30V 250W

Search across all available documentation for this part.

Active

EOS Power

AC/DC CONVERTER 30V 250W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MWLC550-1030	MWLC550 Series

Applications	Medical	Medical
Approval Agency	cUL, CE, UL, CB, NEMKO	cUL, CE, UL, CB, NEMKO
Current - Output 1	8.33 A	4.31 - 16.67 A
Efficiency	-	90 - 92 %
Features	PFC, Adjustable Output, Universal Input	PFC, Adjustable Output, Universal Input
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	250 W, 550 W	200 - 550 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.5 "
Type	Open Frame	Open Frame
Voltage - Input	390 VDC	390 VDC
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	30 V	12 - 48 V

AC/DC CONVERTER 15V 200W

Part	Features	Number of Outputs	Voltage - Isolation	Mounting Type	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Power (Watts)	Type	Voltage - Output 1	Applications	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input
EOS Power MWLC550-1015	Adjustable Output, PFC, Universal Input	1	4000 V	Chassis Mount	CB, CE, cUL, NEMKO, UL	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	90 %	200 W	Open Frame	15 V	Medical	13.33 A	90 VAC	264 VAC	390 VDC
EOS Power MWLC550-1012	Adjustable Output, PFC, Universal Input	1	4000 V	Chassis Mount	CB, CE, cUL, NEMKO, UL	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	90 %	200 W	Open Frame	12 V	Medical	16.67 A	90 VAC	264 VAC	390 VDC
EOS Power MWLC550-1030	Adjustable Output, PFC, Universal Input	1	4000 V	Chassis Mount	CB, CE, cUL, NEMKO, UL	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "		250 W, 550 W	Open Frame	30 V	Medical	8.33 A	90 VAC	264 VAC	390 VDC
EOS Power MWLC550-1048	Adjustable Output, PFC, Universal Input	1	4000 V	Chassis Mount	CB, CE, cUL, NEMKO, UL	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	92 %	250 W, 550 W	Open Frame	48 V	Medical	5.21 A	90 VAC	264 VAC	390 VDC
EOS Power MWLC550-1058	Adjustable Output, PFC, Universal Input	1	4000 V	Chassis Mount	CB, CE, cUL, NEMKO, UL	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "		250 W, 550 W	Open Frame		Medical	4.31 A	90 VAC	264 VAC	390 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	42	$ 149.64

General part information

Open Frame AC DC Converters 1 Output 30V 90 ~ 264 VAC, 390VDC Input

Technical documentation and resources

No documents available
