657-2465-303F
ActiveDIALIGHT

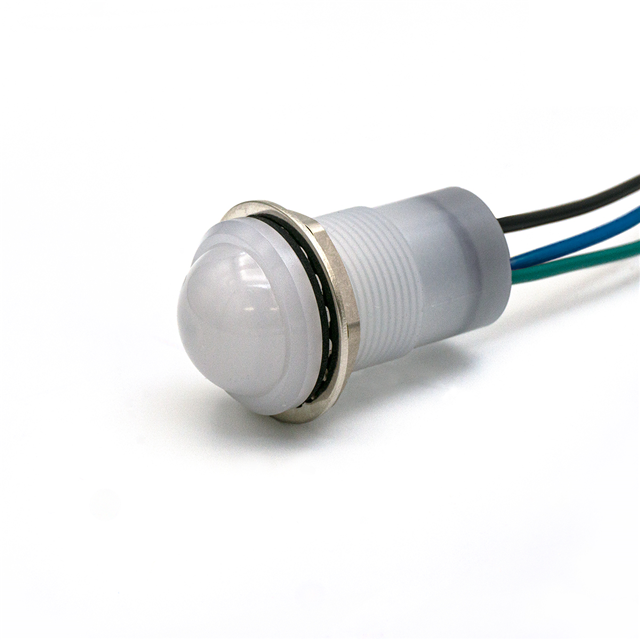

MULTICOLOUR PANEL INDICATORS, GREEN, BLUE, 0.687 ", G 20MA, B 20MA, G 30V, B 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
657-2465-303F
ActiveDIALIGHT
MULTICOLOUR PANEL INDICATORS, GREEN, BLUE, 0.687 ", G 20MA, B 20MA, G 30V, B 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 657-2465-303F | 657-24 Series |
|---|---|---|
| Ingress Protection | NEMA 4X, IP67 | NEMA 4X, IP67 |
| Lamp Color | Green, Blue | Red, Blue, Green, Yellow |
| Lens Color | White | White |
| Lens Size [diameter] | 16.5 mm Dia | 16.5 mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 500 mcd, 90 mcd | 90 - 500 mcd |
| Millicandela Rating | - | 255 mcd |
| Millicandela Rating | - | 90 mcd |
| Millicandela Rating | - | 260 - 500 mcd |
| Panel Cutout Dimensions | 17.46 mm | 17.46 mm |
| Panel Cutout Dimensions | 0.69 in | 0.69 in |
| Panel Cutout Shape | Round | Round |
| Ratings | DC | DC |
| Type | LED | LED |
| Voltage [Max] | 30 V | 30 V |
| Voltage [Min] | 10 V | 10 V |
657-24 Series
PMI, DOME, BR, 10-30VDC
| Part | Panel Cutout Shape | Lens Style | Ratings | Panel Cutout Dimensions | Panel Cutout Dimensions | Type | Lamp Color | Lens Transparency | Voltage [Max] | Voltage [Min] | Lens Color | Lens Size [diameter] | Millicandela Rating [custom] | Millicandela Rating [custom] | Ingress Protection | Millicandela Rating [custom] | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT 657-2425-303F | Round | Round with Domed Top | DC | 17.46 mm | 0.69 in | LED | Blue, Red | Diffused | 30 V | 10 V | White | 16.5 mm Dia | 255 mcd | 90 mcd | IP67, NEMA 4X | ||
DIALIGHT 657-2485-303F | Round | Round with Domed Top | DC | 17.46 mm | 0.69 in | LED | Blue, Green, Red | Diffused | 30 V | 10 V | White | 16.5 mm Dia | 255 mcd | 90 mcd | IP67, NEMA 4X | 500 mcd | |
DIALIGHT 657-2495-303F | Round | Round with Domed Top | DC | 17.46 mm | 0.69 in | LED | Green, Red, Yellow | Diffused | 30 V | 10 V | White | 16.5 mm Dia | IP67, NEMA 4X | 255 mcd, 260 mcd, 500 mcd | |||
DIALIGHT 657-2455-303F | Round | Round with Domed Top | DC | 17.46 mm | 0.69 in | LED | Red, Yellow | Diffused | 30 V | 10 V | White | 16.5 mm Dia | 255 mcd | IP67, NEMA 4X | 260 mcd | ||
DIALIGHT 657-2415-303F | Round | Round with Domed Top | DC | 17.46 mm | 0.69 in | LED | Green, Red | Diffused | 30 V | 10 V | White | 16.5 mm Dia | 255 mcd | IP67, NEMA 4X | 500 mcd | ||
DIALIGHT 657-2435-303F | Round | Round with Domed Top | DC | 17.46 mm | 0.69 in | LED | Green, Yellow | Diffused | 30 V | 10 V | White | 16.5 mm Dia | IP67, NEMA 4X | 260 mcd, 500 mcd | |||
DIALIGHT 657-2465-303F | Round | Round with Domed Top | DC | 17.46 mm | 0.69 in | LED | Blue, Green | Diffused | 30 V | 10 V | White | 16.5 mm Dia | IP67, NEMA 4X | 90 mcd, 500 mcd |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
657-24 Series
LED Panel Indicator Blue, Green Diffused 10V ~ 30V 20mA Wire Leads - 6" (152.40mm)
