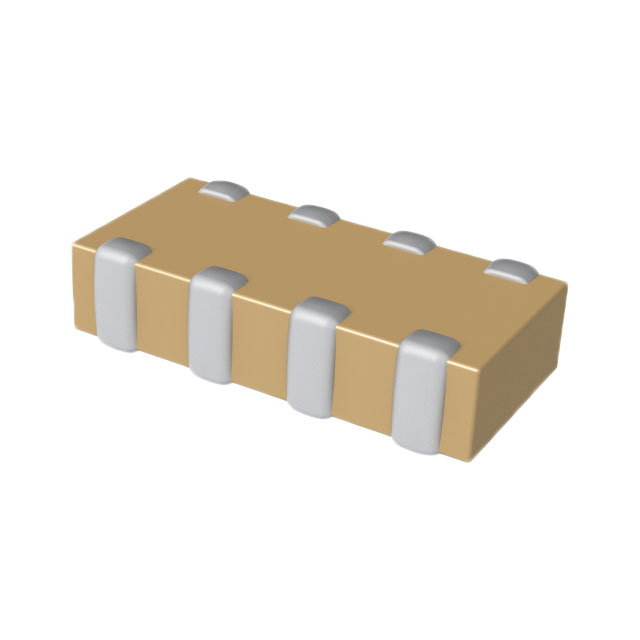

CA064X472K5RAC7800 - CA064X472K5RAC7800

CA064X472K5RAC7800

Obsolete
KEMET

CAP ARRAY 4700PF 50V X7R 0612

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCA064X472K5RACTUKEM_C1017_X7R_ARRAY_SMD.pdf+1
CA064X472K5RAC7800 - CA064X472K5RAC7800

CA064X472K5RAC7800

Obsolete
KEMET

CAP ARRAY 4700PF 50V X7R 0612

Deep-Dive with AI

DocumentsCA064X472K5RACTUKEM_C1017_X7R_ARRAY_SMD.pdf+1

Technical Specifications

Parameters and characteristics for this part

SpecificationCA064X472K5RAC7800
Capacitance4700 pF
Circuit TypeIsolated
Dielectric MaterialCeramic
Height - Seated (Max) [Max] [z]0.035 "
Height - Seated (Max) [Max] [z]0.9 mm
Mounting TypeSurface Mount
Number of Capacitors4
Package / Case1206 (3216 Metric)
Size / Dimension [x]0.126 "
Size / Dimension [x]3.2 mm
Size / Dimension [y]0.063 in
Size / Dimension [y]1.6 mm
Supplier Device Package0612
Supplier Device Package1632
Temperature CoefficientX7R
Tolerance10 %
Voltage - Rated50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.38
10$ 0.25
50$ 0.19
100$ 0.15
500$ 0.12
1000$ 0.10
Digi-Reel® 1$ 0.38
10$ 0.25
50$ 0.19
100$ 0.15
500$ 0.12
1000$ 0.10
Tape & Reel (TR) 4000$ 0.09
8000$ 0.08

Description

General part information

CA064X Series

4700pF Isolated Capacitor 4 Array 50 V X7R 1206 (3216 Metric)
