Technical Specifications
Parameters and characteristics for this part
| Specification | M20-7810945 |
|---|---|
| Applications | General Purpose |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.59 µin |
| Contact Finish Thickness - Mating | 0.015 µm |
| Contact Finish Thickness - Post | 0.15 µm |
| Contact Finish Thickness - Post | 5.9 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 3.56 mm |
| Insulation Height | 0.14 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
M20-781 Series
| Part | Pitch - Mating | Pitch - Mating | Applications | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Current Rating (Amps) | Number of Positions Loaded | Fastening Type | Features | Termination | Connector Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Mounting Type | Insulation Height | Insulation Height | Insulation Material | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Material Flammability Rating | Contact Type | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 10 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 18 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 24 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 24 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | 16 | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 4 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 40 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 12 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black | 16 | |
Harwin Inc. | 0.1 in | 2.54 mm | General Purpose | 2.54 mm | 0.1 in | 40 | 0.59 µin | 0.015 µm | Gold | 3 A | All | Push-Pull | Board Guide | Solder | Receptacle Bottom or Top Entry | Gold | -40 °C | 105 ░C | 2 | Surface Mount | 3.56 mm | 0.14 in | Polyamide (PA9T) Nylon 9T Glass Filled | Phosphor Bronze | 0.15 µm | 5.9 µin | Square | UL94 V-0 | Female Socket | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-781 Series

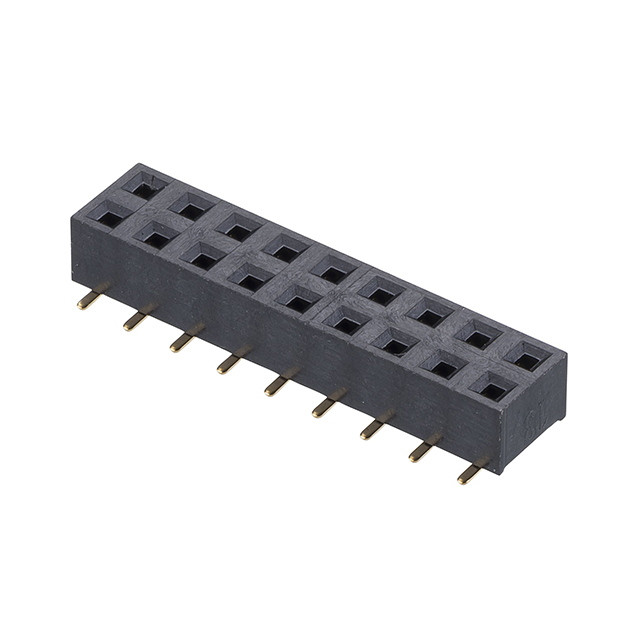

18 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
