2439-0#

Active

Pomona Electronics

BINDING POST, 5 A, 1.5 KV, TIN PLATED CONTACTS, BRASS, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

2439-0#

Active

Pomona Electronics

BINDING POST, 5 A, 1.5 KV, TIN PLATED CONTACTS, BRASS, BLACK

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2439-0#

Color	Black
Current Rating (Amps)	5 A
Head Size [custom]	0.086 in
Head Size [custom]	2.18 mm
Head Size [diameter]	9.65 mm
Head Size [diameter]	0.38 in
Material - Body	Brass
Material - Insulation	Polycarbonate
Material - Insulation	PC
Nut Material	Brass
Nut Plating	Nickel
Panel Thickness [Max]	0.17 "
Panel Thickness [Max]	4.32 mm
Panel Thickness [Min]	0.07 "
Panel Thickness [Min]	1.78 mm
Plating - Body	Tin
Termination	Turret, Threaded
Termination Thread	8-32
Type	Miniature
Voltage Rating	1500 V rms

2439 Series

Part	Nut Material	Nut Plating	Current Rating (Amps)	Head Size [custom]	Head Size [diameter]	Head Size [custom]	Head Size [diameter]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Voltage Rating	Color	Plating - Body	Termination	Termination Thread	Material - Body	Material - Insulation	Material - Insulation	Type
Pomona Electronics 2439-5	Brass	Nickel	5 A	0.086 in	9.65 mm	2.18 mm	0.38 in	0.17 "	0.07 "	4.32 mm	1.78 mm	1500 V rms	Green	Tin	Threaded Turret	8-32	Brass	Polycarbonate	PC	Miniature
Pomona Electronics 2439-1	Brass	Nickel	5 A	0.086 in	9.65 mm	2.18 mm	0.38 in	0.17 "	0.07 "	4.32 mm	1.78 mm	1500 V rms	Brown	Tin	Threaded Turret	8-32	Brass	Polycarbonate	PC	Miniature
Pomona Electronics 2439-0#	Brass	Nickel	5 A	0.086 in	9.65 mm	2.18 mm	0.38 in	0.17 "	0.07 "	4.32 mm	1.78 mm	1500 V rms	Black	Tin	Threaded Turret	8-32	Brass	Polycarbonate	PC	Miniature
Pomona Electronics 2439-0	Brass	Nickel	5 A	0.086 in	9.65 mm	2.18 mm	0.38 in	0.17 "	0.07 "	4.32 mm	1.78 mm	1500 V rms	Black	Tin	Threaded Turret	8-32	Brass	Polycarbonate	PC	Miniature
Pomona Electronics 2439-2	Brass	Nickel	5 A	0.086 in	9.65 mm	2.18 mm	0.38 in	0.17 "	0.07 "	4.32 mm	1.78 mm	1500 V rms	Red	Tin	Threaded Turret	8-32	Brass	Polycarbonate	PC	Miniature
Pomona Electronics 2439-6	Brass	Nickel	5 A	0.086 in	9.65 mm	2.18 mm	0.38 in	0.17 "	0.07 "	4.32 mm	1.78 mm	1500 V rms	Blue	Tin	Threaded Turret	8-32	Brass	Polycarbonate	PC	Miniature

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	500	$ 8.64
Newark	Each	1	$ 10.59

Description

General part information

2439 Series

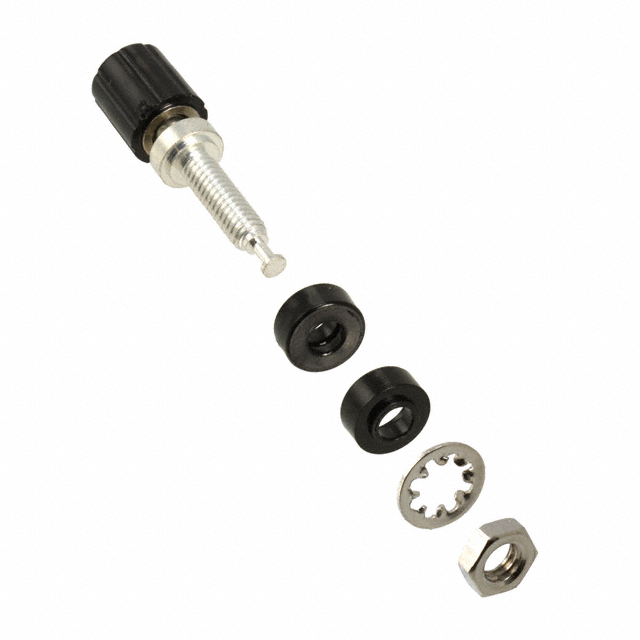

The 2439-0# is a black panel-mount single insulated Miniature Binding Post accepts miniature banana plug, wire or spade lug. It is made of tin-plated brass body with solder turret terminal and a polycarbonate thumb nut, mounting base and insulator.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
