74LVC540AQ20-13
ActiveDiodes Inc
OCTAL BUFFER/LINE DRIVER WITH 3 STATE OUTPUTS
Deep-Dive with AI
Search across all available documentation for this part.
74LVC540AQ20-13
ActiveDiodes Inc
OCTAL BUFFER/LINE DRIVER WITH 3 STATE OUTPUTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVC540AQ20-13 |
|---|---|
| Current - Output High, Low | 24 mA |
| Logic Type | Inverting, Buffer |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |

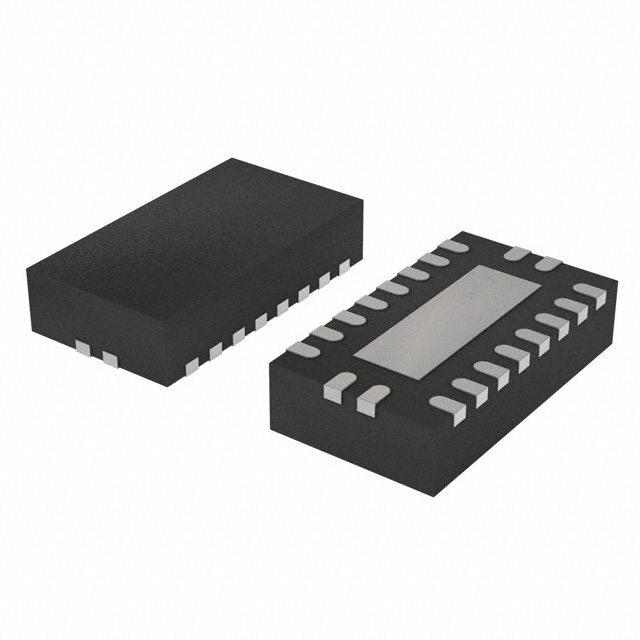

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | V-QFN4525-20 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 0.21 | |
| 5000 | $ 0.20 | |||
| 7500 | $ 0.19 | |||
| 12500 | $ 0.18 | |||
| 17500 | $ 0.17 | |||
| 25000 | $ 0.17 | |||
| 62500 | $ 0.16 | |||
Description
General part information
74LVC540A Series
The 74LVC540A is an octal inverting buffer/driver is designed for driving bus lines or buffer memory address registers. The 3-state control gate is a 2-input AND gate with active-low inputs so that, if either output enable (OE1orOE2) input is high, all eight outputs are in the high-impedance state.
