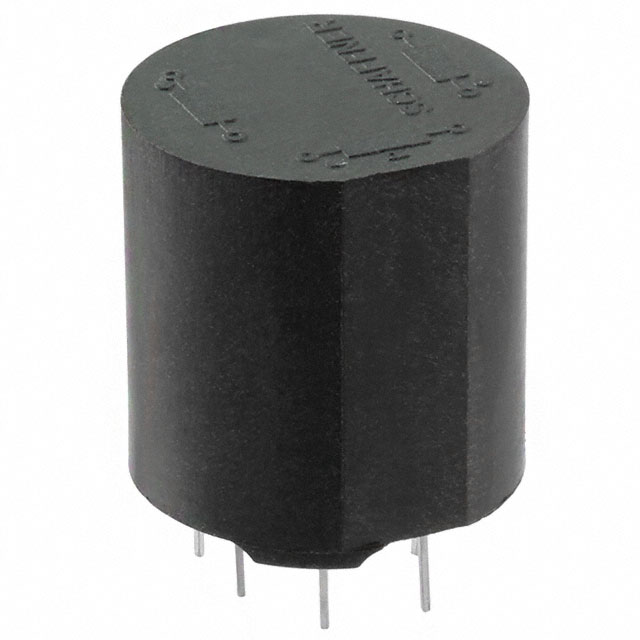

IT213

Active

TE Connectivity Raychem Cable Protection

XFRMR PULSE 1:1:1 DL 6.5MH .25A

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

XFRMR PULSE 1:1:1 DL 6.5MH .25A

Technical Specifications

Parameters and characteristics for this part

Specification	IT213

Height - Seated (Max) [Max] [z]	20 mm
Height - Seated (Max) [Max] [z]	0.787 "
Inductance	6.5 mH
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [diameter]	0.748 in
Size / Dimension [diameter]	19 mm
Transformer Type	Data/Voice Coupling
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Weight	9.12 g
Weight	0.32 oz

Part	Mounting Type	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Transformer Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity Raychem Cable Protection IT258	Through Hole	2.5 mH	0.445 in	11.3 mm	1:1	5.7 g	0.2 oz	70 °C	-25 °C	17.6 mm	0.693 "	16.7 mm	0.657 in	Data/Voice Coupling
TE Connectivity Raychem Cable Protection IT213	Through Hole	6.5 mH				9.12 g	0.32 oz	70 °C	-25 °C					Data/Voice Coupling	0.748 in	19 mm	1	1	1	20 mm	0.787 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

.25 A, PCB Pin, UL 94V-0, Schaffner IT-Series, Pulse Transformers
