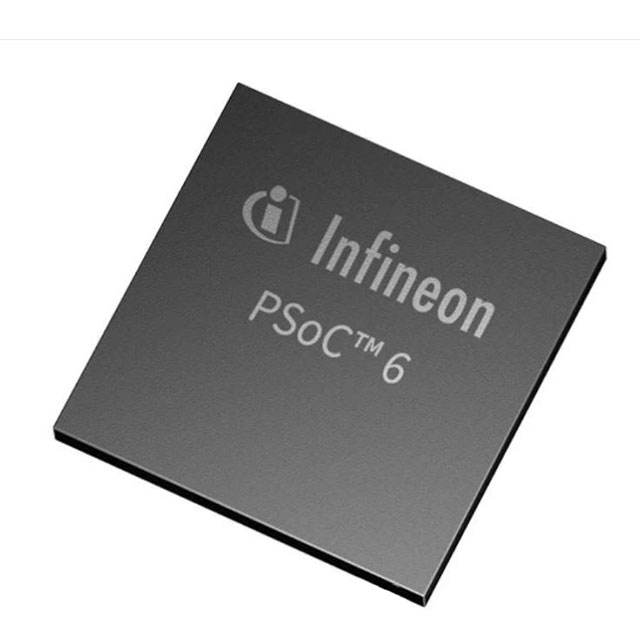

CY8C624AAZI-S2D14

Active

Infineon Technologies

MCU 32-BIT ARM CORTEX M0+/ARM CORTEX M4F RISC 2MB FLASH 1.8V/2.5V/3.3V 128-PIN TQFP TRAY

Deep-Dive with AI

Search across all available documentation for this part.

CY8C624AAZI-S2D14

Active

Infineon Technologies

MCU 32-BIT ARM CORTEX M0+/ARM CORTEX M4F RISC 2MB FLASH 1.8V/2.5V/3.3V 128-PIN TQFP TRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY8C624AAZI-S2D14

Connectivity	SSP, USB, SPI, SmartCard, eMMC/SD/SDIO, FIFO, LINbus, IrDA, Microwire, UART/USART, I2C
Core Processor	ARM® Cortex®-M0+, ARM® Cortex®-M4F
Core Size [custom]	32-Bit Dual-Core
Mounting Type	Surface Mount
Number of I/O	102
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal
Package / Case	128-LQFP
Peripherals	CapSense, I2S, WDT, LVD, LCD, POR, Brown-out Detect/Reset, PWM
Program Memory Size	2 MB
Program Memory Type	FLASH
RAM Size	1 M
Speed	150 MHz
Speed	100 MHz
Supplier Device Package	128-TQFP (14x20)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.7 V

CY8C624A Series

Part	Mounting Type	Core Size [custom]	Package / Case	Oscillator Type	Supplier Device Package	Connectivity	Program Memory Size	Number of I/O	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Peripherals	RAM Size	Core Processor	Speed	Speed	Program Memory Type	EEPROM Size	Data Converters
Infineon Technologies CY8C624ABZI-S2D14	Surface Mount	32-Bit Dual-Core	124-VFBGA	External Internal	124-VFBGA (9x9)	eMMC/SD/SDIO FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART USB	2 MB	100 I/O	3.6 V	1.7 V	85 °C	-40 °C	Brown-out Detect/Reset CapSense I2S LCD LVD POR PWM WDT	1 M	ARM® Cortex®-M0+ ARM® Cortex®-M4F	150 MHz	100 MHz	FLASH
Infineon Technologies CY8C624ABZI-S2D44T	Surface Mount	32-Bit Dual-Core	124-VFBGA	External Internal	124-VFBGA (9x9)	eMMC/SD/SDIO FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART USB	2 MB	100 I/O	3.6 V	1.7 V	85 °C	-40 °C	Brown-out Detect/Reset CapSense Crypto - AES DMA I2S LCD LVD POR PWM RSA SHA Temp Sensor TRNG WDT	1 M	ARM® Cortex®-M0+ ARM® Cortex®-M4F	150 MHz	100 MHz	FLASH
Infineon Technologies CY8C624AAZI-S2D14	Surface Mount	32-Bit Dual-Core	128-LQFP	External Internal	128-TQFP (14x20)	eMMC/SD/SDIO FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART USB	2 MB	102	3.6 V	1.7 V	85 °C	-40 °C	Brown-out Detect/Reset CapSense I2S LCD LVD POR PWM WDT	1 M	ARM® Cortex®-M0+ ARM® Cortex®-M4F	150 MHz	100 MHz	FLASH
Infineon Technologies CY8C624ABZI-S2D14T	Surface Mount	32-Bit Dual-Core	124-VFBGA	External Internal	124-VFBGA (9x9)	eMMC/SD/SDIO FIFO I2C IrDA LINbus Microwire PCM PDM SmartCard SPI SSP UART/USART USB	2 MB	100 I/O	3.6 V	1.7 V	85 °C	-40 °C	Brown-out Detect/Reset CapSense DMA I2S LCD LVD POR PWM Temp Sensor WDT	1 M	ARM® Cortex®-M0+ ARM® Cortex®-M4F	150 MHz	100 MHz	FLASH	32 K	A/D 16x10/12b SAR D/A 2x7/8b Sigma-Delta
Infineon Technologies CY8C624ABZI-S2D04	Surface Mount	32-Bit Dual-Core	124-VFBGA	External Internal	124-VFBGA (9x9)	eMMC/SD/SDIO FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART USB	2 MB	100 I/O	3.6 V	1.7 V	85 °C	-40 °C	Brown-out Detect/Reset CapSense I2S LCD LVD POR PWM WDT	1 M	ARM® Cortex®-M0+ ARM® Cortex®-M4F	150 MHz	100 MHz	FLASH
Infineon Technologies CY8C624ABZI-S2D44	Surface Mount	32-Bit Dual-Core	124-VFBGA	External Internal	124-VFBGA (9x9)	eMMC/SD/SDIO FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART USB	2 MB	100 I/O	3.6 V	1.7 V	85 °C	-40 °C	Brown-out Detect/Reset CapSense Crypto - AES DMA I2S LCD LVD POR PWM RSA SHA Temp Sensor TRNG WDT	1 M	ARM® Cortex®-M0+ ARM® Cortex®-M4F	150 MHz	100 MHz	FLASH	32 K	16x12b Sigma-Delta A/D 16x10b SAR D/A 2x7/8b
Infineon Technologies CY8C624AAZI-S2D44	Surface Mount	32-Bit Dual-Core	128-LQFP	External Internal	128-TQFP (14x20)	eMMC/SD/SDIO FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART USB	2 MB	102	3.6 V	1.7 V	85 °C	-40 °C	Brown-out Detect/Reset CapSense I2S LCD LVD POR PWM WDT	1 M	ARM® Cortex®-M0+ ARM® Cortex®-M4F	150 MHz	100 MHz	FLASH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.54
		10	$ 11.52
		72	$ 11.04
		144	$ 9.73
		288	$ 9.25
		504	$ 8.66
		1008	$ 7.94

Description

General part information

CY8C624A Series

ARM® Cortex®-M0+, ARM® Cortex®-M4F PSoC® 6 Microcontroller IC 32-Bit Dual-Core 100MHz, 150MHz 2MB (2M x 8) FLASH 128-TQFP (14x20)
