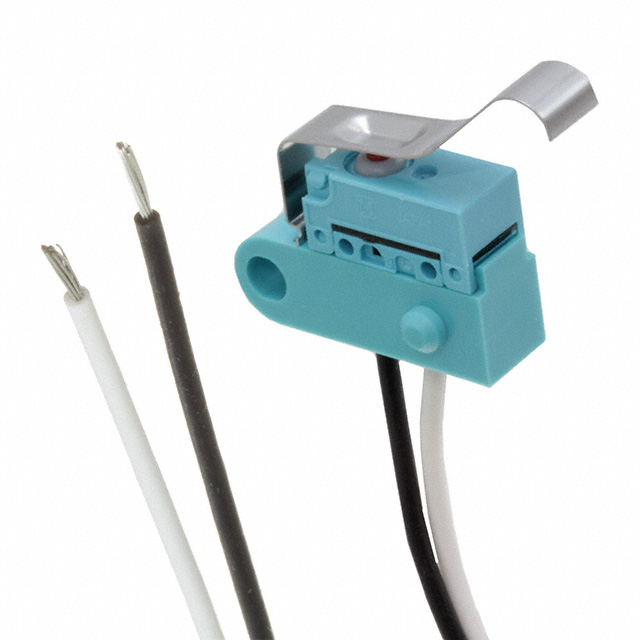

ABJ363860

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NO 2A 125V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NO 2A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACT SPST-NO 2A 125V

Part	Overtravel	Overtravel	Electrical Life	Differential Travel	Differential Travel	Voltage Rating - DC	Mechanical Life	Operating Position	Operating Position	Actuator Type	Release Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Operating Force	Termination Style	Ingress Protection	Voltage Rating - AC	Mounting Type	Current Rating (Amps)
Panasonic Electric Works ABJ363860	0.098 in	2.5 mm	30000 Cycles	1 mm	0.04 in	30 V	500000 Cycles	0.63 in	16 mm	Leaf, Lever	30 gf	SPST-NO	85 °C	-40 °C	Off-Mom	130 gf	Wire Leads	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	2 A
Panasonic Electric Works ABJ363841	0.098 in	2.5 mm	100000 Cycles	1 mm	0.04 in	30 V	500000 Cycles	0.63 in	16 mm	Leaf, Lever	20 gf	SPST-NO	85 °C	-40 °C	Off-Mom	100 gf	Wire Leads	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	100 mA
Panasonic Electric Works ABJ363840	0.098 in	2.5 mm	30000 Cycles	1 mm	0.04 in	30 V	500000 Cycles	0.63 in	16 mm	Leaf, Lever	20 gf	SPST-NO	85 °C	-40 °C	Off-Mom	100 gf	Wire Leads	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount
Panasonic Electric Works ABJ3638409	0.098 in	2.5 mm	6000 Cycles	1 mm	0.04 in	30 V	500000 Cycles	0.63 in	16 mm	Leaf, Lever	20 gf	SPST-NO	85 °C	-40 °C	Off-Mom	100 gf	Wire Leads	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount
Panasonic Electric Works ABJ3638609	0.098 in	2.5 mm	6000 Cycles	1 mm	0.04 in	30 V	500000 Cycles	0.63 in	16 mm	Leaf, Lever	30 gf	SPST-NO	85 °C	-40 °C	Off-Mom	130 gf	Wire Leads	IP67 - Dust Tight, Waterproof	125 V	Chassis Mount	2 A
