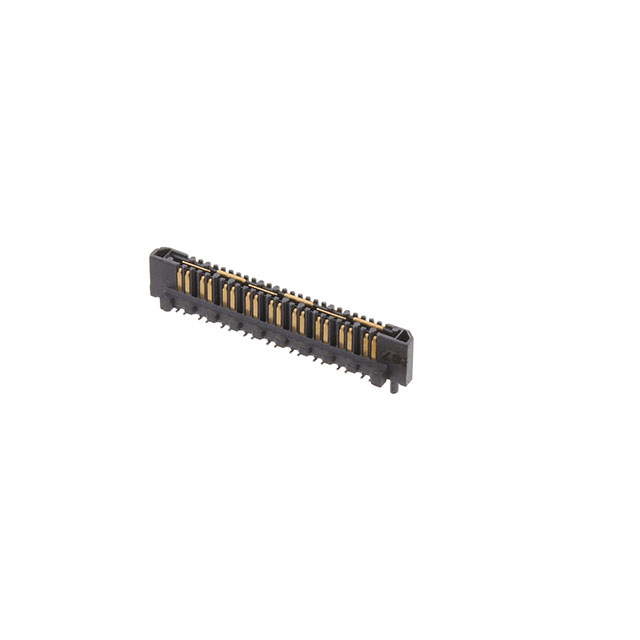

QRM8-018-02.0-L-D-DP-A
ActiveSamtec Inc.
CONN ARRAY PLUG 36POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
QRM8-018-02.0-L-D-DP-A
ActiveSamtec Inc.
CONN ARRAY PLUG 36POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QRM8-018-02.0-L-D-DP-A |
|---|---|
| Connector Type | Differential Pair Array, Male |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Height Above Board [z] | 0.189 in |
| Height Above Board [z] | 4.8 mm |
| Mated Stacking Heights | 7 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.96 | |
| 10 | $ 10.13 | |||
| 25 | $ 9.57 | |||
| 50 | $ 9.23 | |||
| 100 | $ 8.63 | |||
Description
General part information
QRM8-018 Series
36 Position Connector Differential Pair Array, Male Surface Mount Gold
