DC-03BFFA-LL7001

Active

Amphenol LTW

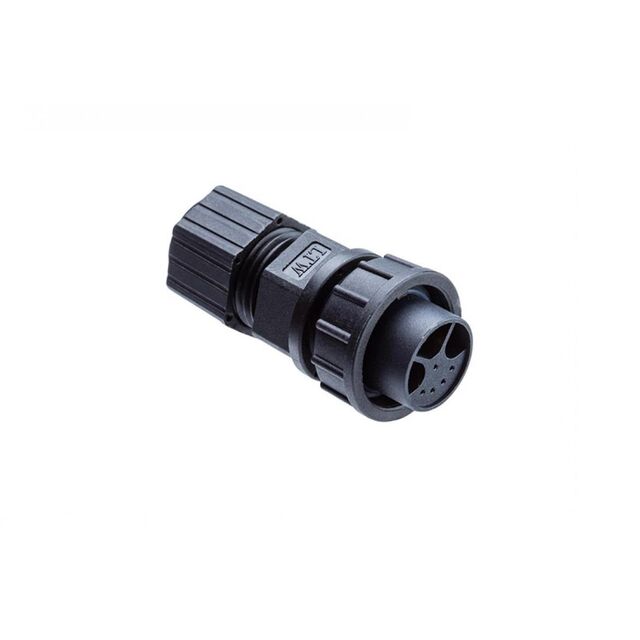

CERES, LARGE SIZE, PLASTIC, 20A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, SOLDER, FIELD INSTALLABLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC-03BFFA-LL7001

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, SOLDER, FIELD INSTALLABLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC-03BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	10.8 mm
Cable Opening [Max] [custom]	0.425 in
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded

DC-03BFFA Series

Part	Connector Type	Features	Current Rating (Amps)	Backshell Material, Plating	Orientation	Mounting Type	Ingress Protection	Contact Material	Voltage Rating	Insert Material	Contact Finish - Mating	Shell Size - Insert	Number of Positions	Primary Material	Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Fastening Type	Shell Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating	Contact Type	Contact Shape	Note	Type	Housing Color	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW DC-03BFFA-QL8APP	Female Sockets Plug	Backshell	20 A	Thermoplastic	Keyed	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Copper Alloy	300 VDC	Thermoplastic	Gold	D	6	Plastic	Black	Crimp	-40 °C	105 ░C	Unshielded
Amphenol LTW DC-03BFFA-QL8SPP	Female Sockets Plug	Backshell	20 A		Keyed	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Copper Alloy	300 VAC	Polyamide (PA) Nylon Glass Filled	Gold	D	3	Plastic	Black	Crimp	-40 °C	105 ░C	Unshielded	Push-Pull	Glass Filled Nylon Polyamide (PA)	0.394 in	8 mm	10 mm	0.315 in	UL94 V-0
Amphenol LTW DC-03BFFA-QL8SNP	Plug Housing	Backshell			Keyed	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof			Thermoplastic		D		Plastic			-40 °C	105 ░C	Unshielded								Crimp	Circular	Contacts Not Included	For Female Sockets	Black
Amphenol LTW DC-03BFFA-QL8MNP	Plug Housing	Backshell			Keyed	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof			Thermoplastic		D		Plastic			-40 °C	105 ░C	Unshielded								Crimp	Circular	Contacts Not Included	For Female Sockets	Black
Amphenol LTW DC-03BFFA-LL7001	Female Sockets Plug	Backshell Coupling Nut		Nylon Polyamide (PA)	Keyed	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Copper Alloy		Polyamide (PA) Nylon Glass Filled	Gold	D		Plastic	Black				Unshielded		Glass Filled Nylon Polyamide (PA)	0.425 in	5.5 mm	10.8 mm	0.217 in
Amphenol LTW DC-03BFFA-QL8MPP	Female Sockets Plug	Backshell	20 A		Keyed	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Copper Alloy	300 VAC	Polyamide (PA) Nylon Glass Filled	Gold	D	3	Plastic	Black	Crimp	-40 °C	105 ░C	Unshielded	Push-Pull	Glass Filled Nylon Polyamide (PA)					UL94 V-0						10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW DC-03BFFA-QL8ANP	Plug Housing	Backshell			Keyed	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof			Thermoplastic		D		Plastic			-40 °C	105 ░C	Unshielded								Crimp	Circular	Contacts Not Included	For Female Sockets	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.54
		10	$ 11.95
		30	$ 10.59
		50	$ 10.03
		100	$ 9.33
		250	$ 8.50
		500	$ 7.94
		1000	$ 7.44
Newark	Each	10	$ 10.20
		25	$ 9.36
		50	$ 8.36
		100	$ 7.69
		250	$ 7.47

Description

General part information

DC-03BFFA Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
