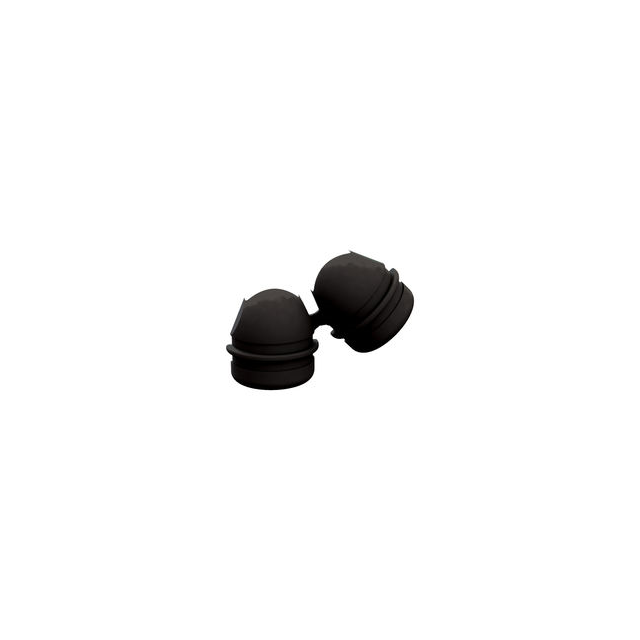

23MP04NEZS

Active

Essentra Access Solutions

BUSHING W/STR RELIEF NYLON BLACK

Search across all available documentation for this part.

Active

Essentra Access Solutions

BUSHING W/STR RELIEF NYLON BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	23MP04NEZS

Bushing, Grommet Type	Bushing, Strain Relief
Color	Black
Diameter - Inside [diameter]	Variable Size
For Use With/Related Products	SPT
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions	Variable Size
Panel Thickness [custom]	0.062 in
Panel Thickness [custom]	1.57 mm

Part	Material	Panel Cutout Dimensions	Diameter - Inside [diameter]	Color	For Use With/Related Products	Bushing, Grommet Type	Material Flammability Rating	Panel Thickness	Panel Thickness	Panel Thickness [custom]	Panel Thickness [custom]
Essentra Access Solutions 23MP04J40	Polyamide (PA) Nylon	Variable Size	Variable Size	Black	HPN SPT-1 SPT-2	Bushing Strain Relief	UL94 V-2	0.81 mm	0.032 in
Essentra Access Solutions 23MP04L10	Polyamide (PA) Nylon	Variable Size	Variable Size	Black	HPN SPT-1 SPT-2	Bushing Strain Relief	UL94 V-2	4.75 mm	0.187 in
Essentra Access Solutions 23MP04K10	Polyamide (PA66) Nylon 6/6	Variable Size	Variable Size	Black	HPN SPT-2	Bushing Strain Relief	UL94 V-2	2.41 mm	0.095 in
Essentra Access Solutions 23MP04K40	Polyamide (PA66) Nylon 6/6	Variable Size	Variable Size	Black	HPN SPT-2	Bushing Strain Relief	UL94 V-2	2.54 mm	0.1 in
Essentra Access Solutions 23MP04NEZS	Polyamide (PA) Nylon	Variable Size	Variable Size	Black	SPT	Bushing Strain Relief	UL94 V-2			0.062 in	1.57 mm
Essentra Access Solutions 23MP04KEZH	Polyamide (PA) Nylon	Variable Size	Variable Size	Black	SPT	Bushing Strain Relief	UL94 V-2			0.062 in	1.57 mm
Essentra Access Solutions 23MP04L40	Polyamide (PA) Nylon	Variable Size	Variable Size	Black	HPN SPT-1 SPT-2	Bushing Strain Relief	UL94 V-2	3.96 mm	0.156 in
Essentra Access Solutions 23MP04N40	Polyamide (PA66) Nylon 6/6	Variable Size	Variable Size	Black	HPN SPT-2	Bushing Strain Relief	UL94 V-2			0.062 in	1.57 mm
Essentra Access Solutions 23MP04K1Z	Polyamide (PA) Nylon	Variable Size	Variable Size	Black	HPN SPT-2	Bushing Strain Relief	UL94 V-2	2.41 mm	0.095 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Variable Size Bushing, Strain Relief Variable Size Black
