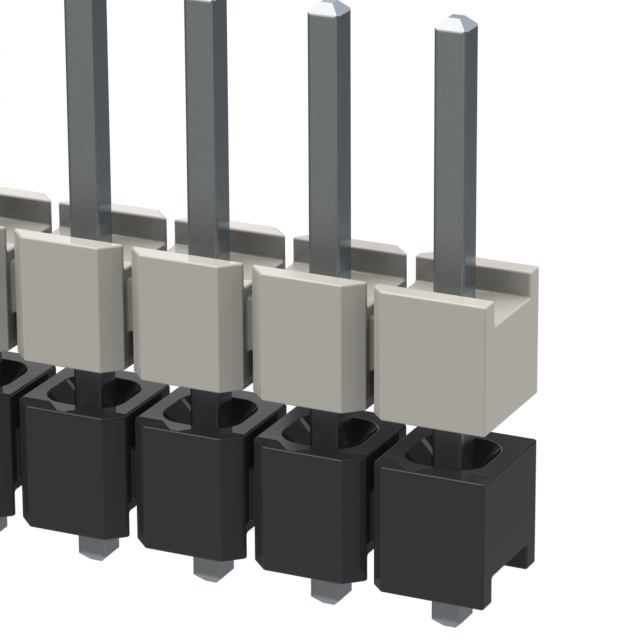

HW-10-07-T-S-200-055

Active

Samtec Inc.

CONN HDR 10POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 10POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Part	Length - Tail [x]	Length - Tail [x]	Termination	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Number of Positions	Row Spacing [x]	Row Spacing	Length - Tail	Length - Tail
Samtec Inc. HW-10-07-G-S-236-100	0.1 "	2.54 mm	Solder	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	1	0.094 in	2.388 mm	0.236 in	5.994 mm	Black	0.25 Ám	10 Áin	Gold	10
Samtec Inc. HW-10-07-G-D-250-090	0.09 in	2.286 mm	Solder	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	2	0.09 in	2.286 mm	0.25 in	6.35 mm	Black	0.25 Ám	10 Áin	Gold	20	0.1 in	2.54 mm
Samtec Inc. HW-10-07-T-S-200-055	0.055 "		Solder	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	1	0.175 in	4.445 mm			Black			Tin	10			1.4 mm
Samtec Inc. HW-10-07-G-D-210-090	0.09 in	2.286 mm	Solder	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	2	0.13 in	3.302 mm	0.21 in	5.334 mm	Black	0.25 Ám	10 Áin	Gold	20	0.1 in	2.54 mm
Samtec Inc. HW-10-07-T-S-240-110			Solder	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	1			0.24 in	6.096 mm	Black			Tin	10			2.8 mm	0.11 in
Samtec Inc. HW-10-07-G-S-200-115	0.115 in	2.921 mm	Solder	Through Hole	10.922 mm	0.43 in	2.54 mm	0.1 in	1	0.115 in	2.921 mm			Black	0.25 Ám	10 Áin	Gold	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.37

General part information

10 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
